Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera - Tinted Bubble, 6.3~63mm Lens, 10x Optical Zoom, H.264,30fps at 1080P

VJR-F801-ICTV
Save
43%
Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera - Tinted Bubble, 6.3~63mm Lens, 10x Optical Zoom, H.264,30fps at 1080P
Hover on image to enlarge
$2,748.00
$1,559.64
You save: $1,188.36 (43%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Description

Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera day night Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera onvif compliance
Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera poe Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera quad video streaming

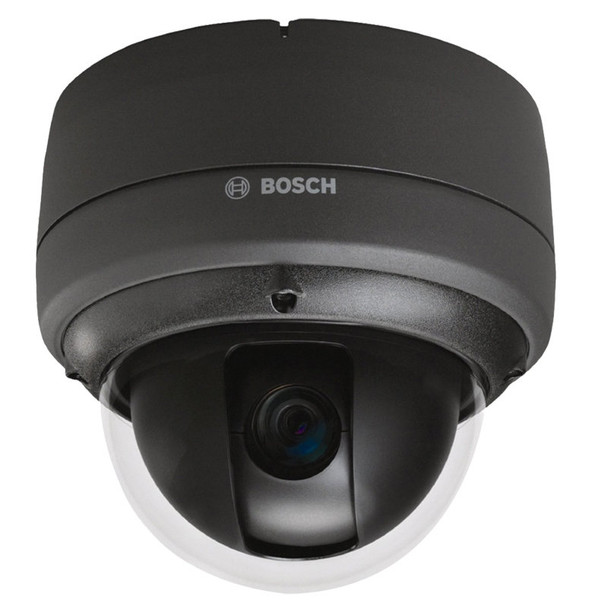

Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera
If you have been looking for a camera that is easy to install and incorporates the remote commissioning technology, then the Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera (charcoal, tinted bubble) is a good choice. It can be positioned as desired through remote access. Featuring a diameter of 5.04 inches, the AutoDome Junior is perfect for discrete surveillance. This day/night camera comes with a 1/2.5 progressive scan CMOS sensor that can capture up to 1080p resolution at 30 fps. Higher frame speeds can be achieved with a little compromise on the resolution.

Possessing quad streaming capabilities, this fixed indoor camera can simultaneously deliver up to three H.264 streams and one MJPEG stream. The feature increases bandwidth efficiency both while recording and viewing the streams. Deploying the Intelligent Video Analysis (IVA) technology, the VJR-F801-ICTV reliably analyses and tracks moving objects with the ability to curb unnecessary alarms. The heavy gauge aluminum housing with tinted bubble resists tampering and vandalism. Loaded with utility features of privacy masking, PoE connection, iSCSI device support and network oriented control; this Bosch Security camera enables versatile operation with a greater degree of reliability. The ONVIF conformant Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera is the perfect addition when you require your surveillance device to sync with and work together with the other video products in the network.

Key Features of the Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera

  • Remote Commissioning: enables easy installation and positioning through a remote head-end unit
  • Progressive Scan CMOS Sensor and 160x Optical Zoom: ensures high definition images at good clarity
  • Quad Streaming: with three H.264 streams and one MJPEG stream
  • Privacy Masking: allows creating up to 15 individually configurable masks for enhanced security
  • Intelligent Video Analysis (IVA): detects and tracks movement more reliably and intelligently
  • ONVIF Conformant: facilitates interoperation between other compliant devices in the same network
bosch vjr-f801-ictv autodome junior 1080p hd indoor security camera>
Features

Manufacturer:
Bosch
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Color:
Black
Discontinued:
no

Security Camera Features

Lens Size:
6.3~63mm
Max. FPS and Resolution:
30fps at 1080P
Resolution:
2.1MP
Sensor Size:
1/2.5"
Sensor Type:
CMOS
Technology:
Network (IP)
Technical Specs

Bosch VJR-F801-ICTV AutoDome Junior 1080P HD Indoor Security Camera Specifications

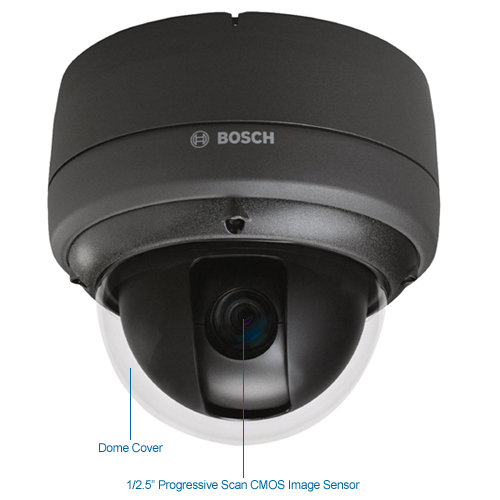

  • Imager: 1/2.5 inch progressive scan CMOS
  • Number of Pixels: 2.1 Megapixels
  • Aspect Ratio: 16:9
  • Lens: 10x optical zoom (6.3 to 63 mm)/(F1.8/F2.5 to close)
  • Focus: Single-shot autofocus
  • Iris: Automatic with manual override
  • Field of View: Horizontal: 5.5° to 50.6°/Vertical: 3.1° to 29.3°
  • Automatic Gain Control: Normal, Medium, High, Fixed
  • Synchronization: Internal
  • Aperture: Correction On/Off
  • Digital Zoom: 16x
  • Sensitivity (typical): 30 IRE / 50 IRE
  • Day Mode SensUP Off: 30 IRE-1.2 lx / 50 IRE-2.0 lx
  • Day Mode SensUP On (64x): 30 IRE-0.038 lx / 50 IRE-0.063 lx
  • Night Mode SensUP Off: 30 IRE-0.06 lx / 50 IRE-0.1 lx
  • Night Mode SensUP On (64x): 30 IRE-0.0018 lx / 50 IRE-0.0031 lx
  • Electronic Shutter Speed (AES): 1x to 64x; 1/50 (1/60) to 1/10000
  • Signal to Noise Ratio: > 50 dB (AGC off)
  • Wide Dynamic Range: 50 dB
  • Backlight Compensation: On/Off
  • White Balance: ATW, Indoor, Outdoor, AWB Hold, Extended ATW, Manual (adjustable R and B signals in Manual mode
  • Day/Night: Monochrome, Color, Auto
  • Camera Setup/Control: Via Internet Explorer Web browser version 7.0 version or later, Bosch Configuration Manager, or BVMS
  • Software Update: Firmware upload
  • Standards: H.264 (ISO/IEC 14496‑10), M‑JPEG, JPEG
  • Streaming: Individually configurable streams in H.264 and M‑JPEG, configurable frame rate and bandwidth; 1080p30-One (1) H.264 1080p30 stream plus one (1) M‑JPEG and one (1) I-frame stream, 720p60-One (1) H.264 720p60 stream plus one (1) M‑JPEG and one (1) I-frame stream, 720p30-Two (2) independently configurable H.264 streams: One (1) H.264 720p30 stream, One (1) H.264 BP+ or H.264 MP SD stream, plus one (1) M‑JPEG and one (1) I-frame stream
  • GOP Structure: IP, IBP, IBBP
  • Data Rate: 9.6 kbps to 6 Mbps
  • Overall IP Delay: 240 ms
  • Resolutions Stream 1 Full HD/1080p: 1920 x 1080, 30 ips
  • Resolutions Stream 1 HD/720p: 1280 x 720, 60 ips
  • Resolutions Stream 1 HD/720p: 1280 x 720, 30 ips
  • Resolutions Stream 2 SD/480p (WVGA): 854 x 480, 30 ips
  • Resolutions Stream 2 SD/240p (WQVGA): 432 x 240, 30 ips
  • Protocols: RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP
  • Ethernet: 10-Base T/100 Base-TX, auto-sensing, half/full duplex, RJ45
  • PoE+: IEEE 802.3at, class 4
  • Rated Voltage: 24 VAC ± 10%, 50/60 Hz or PoE+ (IEEE 802.3at, class 4)
  • Power Draw: 14 W typical
  • Operating Temperature: –10°C to 40°C (14°F to 104°F)
  • Storage Temperature: –20°C to 60°C (–4°F to 140°F)
  • Operating Humidity: 0% to 90% relative, non-condensing
  • Water/Dust Protection: IP54 (excluding VJR-A3-IC mounting option)
  • Masking: Fifteen (15) individually configurable privacy masks
  • Protocol Support: Bosch (OSRD), ONVIF
  • Supported Languages: English, German, Dutch, French, Italian, Spanish, Portuguese, Polish, Russian, Chinese, and Japanese
  • Power PoE+, Indoor Models: RJ-45 100 Base-TX Ethernet PoE+ IEEE 802.3at, class 4
  • Power Camera, All Models: 24 VAC, 50/60 Hz
  • Video and Control: RJ-45 100 Base-TX Ethernet
  • Alarm Output: Open collector NPN 32 VDC at 150 mA max
  • Audio: 9 K Ohm typical 5.5 Vp-p max
  • Size (Diameter x Height) 153.0 x 133.0 mm / (6.02 x 4.61 in.)
  • Bubble Size: 128.0 mm (5.04 in.)
  • Weight: 1.92 kg (4.24 lb)
  • Material Housing: Cast aluminum
  • Material Bubble: Acrylic
  • Color: Charcoal
  • Tinted Bubble: Yes
