Bosch VOT-320V009H 320x240 VOx Arctic Thermal IP Security Camera - 9mm Lens, 3.9km Detection

Brand: Bosch
Part Number: VOT-320V009H
Write a Review
Discontinued
  • Bosch VOT-320V009H
  • 3 Years Limited Manufacturer Warranty
$10,000.00
$7,649.99

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Lens Type : Fixed Lens
  • Lens Size : 9mm Lens
  • Color : White
  • Environmental : Outdoor

Customers Also Viewed

Description

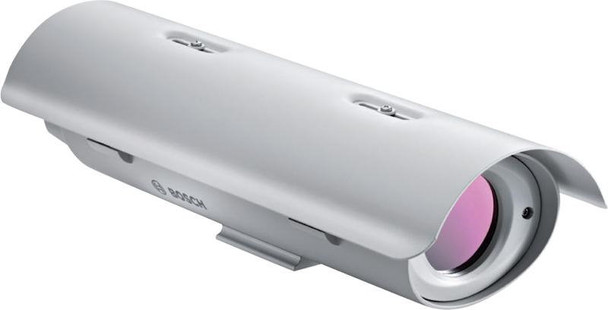

Bosch VOT-320V009H 320x240 VOx Arctic Thermal IP Security Camera

The Bosch VOT-320V009H Thermal IP Camera offers a 320x240 Vanadium Oxide (VOx) sensor and a 9mm Lens (30Hz)). In poor visibility conditions or absolute darkness, the camera delivers high sensitivity, uncooled long wave thermal images. The camera offers a detection range up to 1936' (590 m) and a recognition range up to 486' (148 m). By means of advanced video processing technologies such as multiple automatic, dynamic image optimization algorithms, polarity control (white hot/black hot), and automatic flat-field correction, the camera produces excellent images. The thermal camera focuses on heat radiating objects and makes visible temperature differences of 50 mK or less. H.264 compression, bandwidth throttling, and multicast capabilities facilitate efficient management of bandwidth and storage requirements. The Tri-streaming feature allows the camera to generate two independent H.264 streams and one JPEG stream simultaneously. One high-resolution H.264 stream can be used for live viewing and recording, and the lower resolution H.264 stream can be used for low-bandwidth networks. The JPEG video stream can be easily integrated with third-party JPEG-compatible video management systems and JPEG images can be streamed to another device at the same time. When connected to the network, the camera can use iSCSI targets directly, allowing it to function as a conventional DVR and stream high-performance live video simultaneously. The camera comes with an SD card slot that allows you to easily store and access recorded video. Recorded video can be viewed on a PC using a web browser via the Bosch Video Management System or with the supplied Bosch Video Client. Supporting up to 16 cameras, the bundled Bosch Video Client Surveillance Software allows you to simultaneously configure and monitor multiple cameras via a single screen, as well as archive and search video clips stored on an SD card. ONVIF Conformance ensures that the thermal camera can easily exchange live video, audio, metadata and control information, and automatically discover and connect to network applications such as video management systems. The ability to remotely upgrade latest firmware updates means low investment costs. A robust (IP66, NEMA 4-rated) outdoor housing with built-in window heater makes the thermal camera a good choice for high-risk situations such as fire defense in power plants, coast line monitoring, and traffic control in tunnels.

Key Features:

  • 320x240 Vanadium Oxide (VOx) sensor and a 9mm Lens (30Hz) that help deliver high sensitivity, uncooled long wave thermal images even in poor visibility conditions or absolute darkness
  • Enclosed in a rugged (IP66, NEMA 4-rated) outdoor housing with integrated window heater
  • Well-suited for various high-risk applications like fire defense in power plants, coast line monitoring, and traffic control in tunnels
  • Detection range - 1936' (590 m)
  • Recognition range - 486' (148 m)
  • Field of view - 48° x 37°
  • Advanced video processing technologies such as multiple automatic and dynamic image optimization algorithms, polarity control (white hot/black hot) and automatic flat-field correction produce images with enhanced amount of detail
  • Focuses on heat radiating objects and makes visible temperature differences of 50 mK or less
  • Support for H.264 compression, bandwidth throttling, and multicast capabilities help in efficient management of bandwidth and storage requirements
  • Tri-streaming feature helps generate two independent H.264 streams and one JPEG stream simultaneously
  • High-resolution H.264 stream can be used for live viewing and recording
  • Lower resolution H.264 stream can be used for low-bandwidth networks
  • JPEG video stream can be easily integrated with third-party JPEG compatible video management systems
  • JPEG images can be streamed to another device at the same time
  • Can use iSCSI targets directly on being connected to the network, allowing it to function as a conventional DVR and stream high-performance live video simultaneously
  • Comes with an SD card slot that allows you to easily store and access recorded video
  • ONVIF Conformance ensures easy exchange of live video, audio, metadata and control information, and automatic discovery and connection to network applications such as video management systems
  • Recorded video can be viewed on a PC using a web browser, via the Bosch Video Management System, or with the supplied Bosch Video Client
  • Bosch Video Client Surveillance Software supports up to 16 cameras, and allows simultaneous configuration of multiple cameras, monitoring of multiple cameras via a single screen, as well as archival and search of video clips stored on an SD card
  • Supports remote firmware upgrades
All Security BrandsClose

Additional Information

Camera Style:
Bullet
Color:
White
Environmental:
Outdoor
Lens Size:
9mm
Lens Type:
Fixed Lens
Specialized Camera Feature:
Thermal
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
