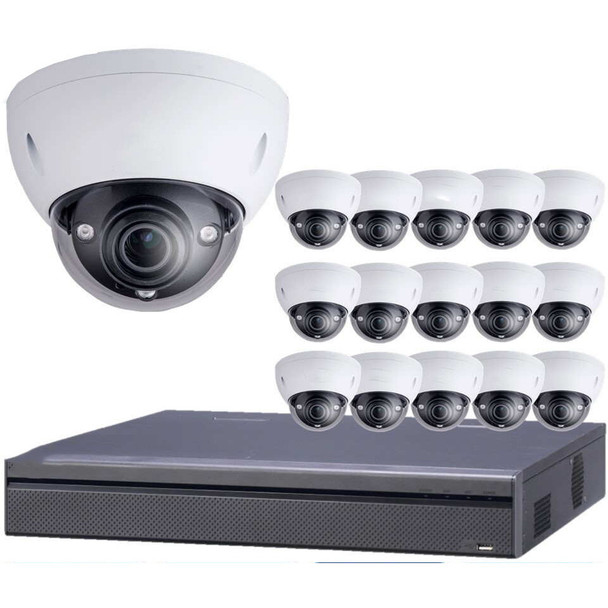

16-Camera 4K Indoor/Outdoor Motorized Dome IP Security Camera System

Brand: Dahua
Part Number: 16-HDB-SYS
Write a Review
  • 16-Camera 4K Indoor/Outdoor Motorized Dome IP Security Camera System
  • 16-Camera 4K Indoor/Outdoor IP Security Camera System
  • NVR4416-16P-4K NVR
  • NVR4416-16P-4K NVR
  • NVR4416-16P-4K NVR
  • IPC-HDBW81200E-Z
  • IPC-HDBW81200E-Z Dimension
  • 16-Camera 4K Indoor/Outdoor Motorized Dome IP Security Camera System
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.1~16.4mm Lens
  • Pre-Installed Storage : No HDD included
  • Environmental : Outdoor


16-Camera 4K Indoor/Outdoor Motorized Dome IP Security Camera System

An all-in-one package for the future of 4K resolution surveillance solutions!

This Camera System comes with sixteen IPC-HDBW81200E-Z dome IP indoor/outdoor cameras. These are top of the line cameras. With up to 4K resolution, you will be able to maximize image quality to attain the information you need. To help you in this endeavor, each camera comes equipped with a 4.1~16.4mm motorized lens. The motorized lens makes it easy for the user to adjust the levels of zoom to get as much scope and width into a shot as they desire. This camera also comes with day/night capabilities with the IR going out to 165ft. Low lux and DWDR technologies provide clear, black-and-white images out of otherwise dark settings. 3DNR - digital noise reduction - helps cut down on image fuzz. It comes with smart detection for tripwire, intrusion, abandoned/missing, scene change, audio, face. This camera also comes with IP67 protection standards, keeping it safe from inclement weather conditions and IK10 will protect it from vandals.

At the head of the system ticks the Dahua N42B3P 16-Channel H.265 4K Network Video Recorder, a 16ch network video recorder. This recorder comes with up to 16-channels of IP camera input, encoding each with H.265/H.264/MJPEG dual compression making for smaller files and easier storage management. Incoming bandwidth carries a steady clip of 256Mbps. 16-channel synchronous playback using a GRID interface comes in at up 5MP with simultaneous HDMI/VGA/TV outputs. 4-SATA slots can provide up to 24TB of storage. This is a 4K compatible NVR, producing ultra display performances for the next generation of high-resolution cameras!

The NVR supports multi-brand network cameras such as Dahua, Arecont Vision, AXIS, Canon, Panasonic, Samsung, Sony, Vivotek, etc.

Key Features of the IPC-HDBW81200E-Z
  • 1/1.7" 12MP Progressive Scan CMOS
  • 4.1mm ~16.4mm motorized lens
  • Max 15fps@12Mp(4000x3000),25/30fps@4K(3840x2160)
  • Support H.264&MJPEG dual codec
  • DWDR
  • IR LED up to 165ft
  • Day/Night
  • 3DNR
  • BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Power over Ethernet (PoE)
  • Weatherproof (IP67)
Key Features of the NVR4416-16P-4K NVR
  • 16ch IP camera input
  • H.265/H.264/MJPEG dual codec recording
  • 256 Mbps bandwidth
  • 12MP resolution playback
  • 16ch synchronous realtime playback
  • Multi-brand support
  • ONVIF compatibility
  • 3D positioning with PTZ cameras
  • 4 SATA III HDD up to 24TB
  • 2 USB (1 USB 3.0)
  • Supports IPC UPnP
  • Support P2P, QR code scan/add
  • Multiple network monitoring (Web viewer, CMS/DMSS)
  • Trigger events - recording, PTZ, tour, alarm, email, etc.
  • Video Detection - Motion, MD Zones, Video Loss/Blanking
  • 16ch alarm input
  • 6ch relay output


Additional Information

Camera Style:
Channel Capacity:
16 Channels
Lens Size:
Lens Type:
Motorized (Automatic Zoom) Lens
Number of Security Cameras:
16 camera system
Pre-Installed Storage:
No HDD included
12MP (4K)
Network (IP)
3-year Manufacturer Warranty
