4-Camera 4K Indoor/Outdoor Dome IP Security Camera System

An all-in-one package for the future of 4K resolution surveillance solutions!

This system comes with a IPC-HDBW4800E, a top of the line 4K resolution dome IP indoor camera with a 4mm fixed lens. With powerful image sensors, you can get up to 4K resolutions at 15fps. Such a resolution (3840x2160) will produce incredibly crisp and clear images. This camera also comes with day/night capabilities with IR that goes out to 65ft. Low lux and WDR technologies provide clear, black-and-white images out of otherwise dark settings. 3DNR - digital noise reduction - helps cut down on image fuzz. This camera comes with IP66 protection standards, keeping it safe from inclement weather conditions. It also comes with IK10 protection. This sturdiness will allow the camera to survive strong kinetic impacts whether they be from wayward debris or humans of ill-intent.

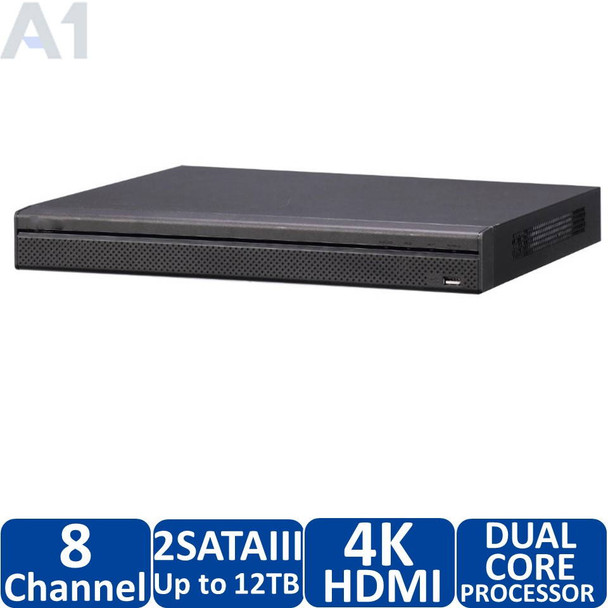

At the heart of the system beats the DHI-NVR52A08-8P-4KS2 NVR, an 8ch network video recorder. This recorder comes with up to 8-channels of IP camera input, encoding each with H.265/H.264/MJPEG compression making for smaller files and easier storage management. Incoming bandwidth carries a nice and smooth speed of 320Mbps. 8-channel synchronous playback using a GRID interface comes in at up 12MP with simultaneous HDMI/VGA/TV outputs. 2-SATA slots can provide up to 12TB of storage. Obviously, the DHI-NVR52A08-8P-4KS2 is a 4K compatible NVR, producing ultra display performances for the next generation of high-resolution cameras!

The NVR supports multi-brand network cameras such as Dahua, Arecont Vision, AXIS, Canon, Panasonic, Samsung, Sony, Vivotek, etc.

Key features of the System

  • 4x 8MP (4K) IP Camera
  • 1x 8 Channel 4K NVR
  • 4mm Fixed Lens
  • Night vision range up to 65ft
  • H.265 recording
  • Outdoor rated
Key Features of the IPC-HDBW4800E
  • 1/2.3″ 4K CMOS
  • 4mm Fixed Lens
  • Up to 15fps @ 4K (3840 x 2160)
  • Progressive scanning
  • Low Lux & WDR technology
  • Day/Night capabilities
  • 3DNR
  • IR up to 65ft
  • H.264 & MJPEG dual-stream encoding
  • Power over Ethernet
  • ONVIF, PSIA, CGI compatibility
  • Max 20 users
  • Weatherproof, Vandalproof
Key Features of the DHI-NVR52A08-8P-4KS2
  • 8 Channel
  • H.265/H.264/MJPEG/MPEG4 Codec Decoding
  • Max 320Mbps Incoming Bandwidth
  • Up to 12MP Resolution Preview & Playback
  • HDMI/VGA Simultaneous Video Output
  • 3D Intelligent Positioning with Dahua PTZ Cameras
  • 1x eSATA interface
  • 2x HDD slots
Features

Manufacturer:
Dahua
Product Type:
Systems
Warranty:
3-year Manufacturer Warranty
Discontinued:
no

Security Camera Systems Features

Lens (Systems):
4mm
Lens Type (Systems) :
Fixed Lens
Pre-Installed Storage:
No HDD included
Recorder Channel Capacity:
8 Channel
Resolution (System):
12 Megapixel - 4K
Security Camera Types:
Dome Security Cameras
Surveillance Technology:
IP Security System
Number of Security Cameras:
4 camera system
Technical Specs

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video& Audio
IP Camera Input 8 channel

Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI , 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9

OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG
Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
Record Rate 192Mbps
Bit Rate 1~ 20Mbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 8 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4/9

Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 8 ports (IEEE802.3at/af) (for -8P model)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 2 SATA III ports, up to 12TB
Auxiliary Interface
USB 2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232 1 port, For PC communication& Keyboard
RS485 1 port, For PTZ control
General
Power Supply Single, DC12V/4A(for non-PoE model)
Single, AC 100~240V, 50/60 Hz(for -8P model)
Power Consumption NVR: 8.7W for non-PoE model(without HDD), 15.2W for PoE model(without HDD)
PoE: Max 25.5W for single port(for -8P model),120W in total
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Dimension
(W×D×H)

1U, 375mm×282mm×56mm for non-PoE model

       375mm×327mm×53mm for PoE model

Weight 1.65KG for non-PoE model(without HDD), 2.65KG for PoE model(without HDD)
