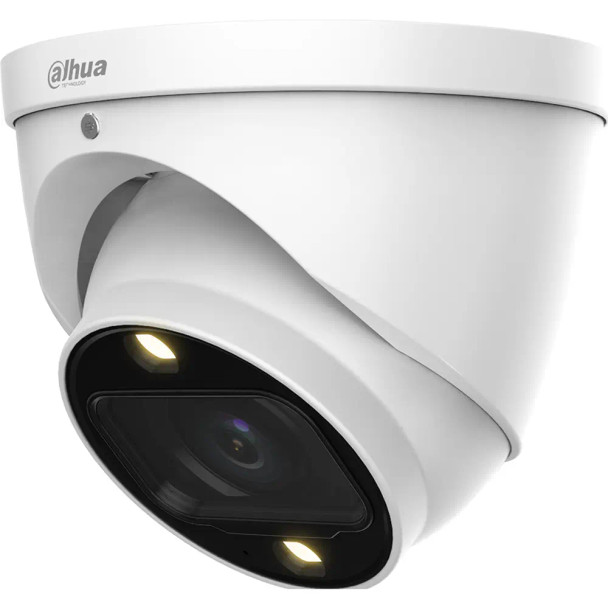

Dahua A52CJ6Z 5MP Outdoor Eyeball HDCVI Security Camera with 2.7-13.5mm Lens and Built-In IR
Experience superior clarity with Dahua's 5MP HDCVI vari-focal camera designed for vast coverage and exceptional image details. This professional-grade security camera leverages existing coax infrastructures to deliver forensic-level images seamlessly over long distances. The motorized vari-focal lens (2.7mm to 13.5mm) provides flexible field of view adjustment from wide-angle monitoring to detailed zoom capabilities, making it perfect for diverse surveillance applications.
The A52CJ6Z features Enhanced Night Color Technology that incorporates white-light LEDs to provide full-color images even in total darkness. Combined with True Wide Dynamic Range (120 dB) technology, this camera excels in challenging lighting conditions, automatically optimizing both bright and dark areas simultaneously. The IP67 rating ensures reliable outdoor performance in harsh weather conditions, while the enhanced operating temperature range allows reliable operation from -30°C to +60°C.
Built with a 1/2.7-inch progressive-scan CMOS sensor and motorized vari-focal lens, this eyeball camera delivers crisp 5MP resolution at 25 fps with a 16:9 aspect ratio. The camera supports multiple video formats including HDCVI, CVBS, AHD, and TVI, ensuring compatibility with various recording systems through format switching via the video output cable.
Key Features:
- 5MP (2880 x 1620) resolution at 25 fps for detailed surveillance footage
- Motorized vari-focal lens 2.7mm to 13.5mm for flexible field of view
- Enhanced Night Color Technology with white-light LEDs for color images in darkness
- True Wide Dynamic Range (120 dB) and 3D noise reduction technology
- Wide angle of view: 35° to 112° horizontal, 19° to 57° vertical
- IP67 ingress protection rating for harsh outdoor environments
- Multiple video format support: HDCVI, CVBS, AHD, and TVI
- Built-in microphone for audio surveillance capabilities
- Dual power supply options: 12 VDC ±10% or 24 VAC ±25%
- Five-year manufacturer warranty for peace of mind
Downloads
Additional Information
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Eyeball
|
|
Day/Night:
|
Day (Color)
|
|
Dimensions:
|
4.80x4.13x4.80in
|
|
Lens Size:
|
2.7-13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Power Supply:
|
12 VDC
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
5MP
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
