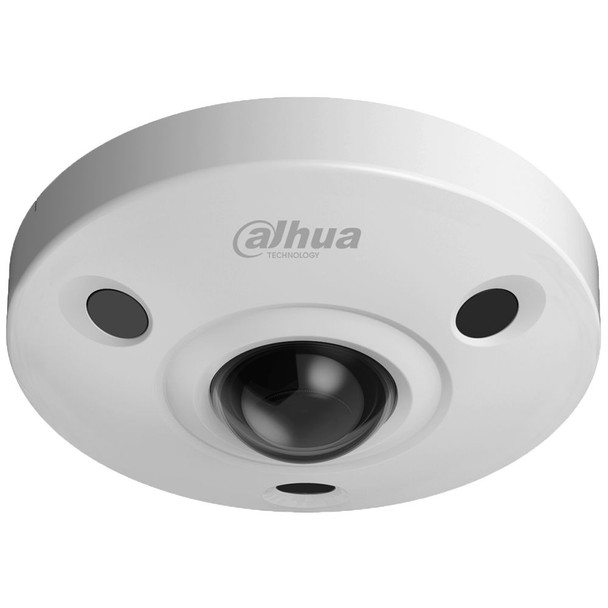

Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera

Part Number: DH-IPC-EBW81242N
Write a Review
  • Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera
  • Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera
  • Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera
  • Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera
  • Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : Smart H.265 Plus,
  • Field of View (Horizontal) : 185°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 1.85mm Lens


Dahua DH-IPC-EBW81242N 12MP 4K IR Panoramic Fisheye IP Security Camera

Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The progressive-scan sensor combined with a fisheye lens provide a high-quality 360° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers Analytics+ functions at the edge – performing complex real-time perimeter people counting and queue management. The IP67 environmental protection rating and the IK10 vandal resistance ensure the camera operates in the harshest environments.

Key Features:

  • 1/1.7-in. 12 MP Progressive-scan CMOS Sensor
  • 12 MP (4000 x 3000) at 30 fps Maximum Resolution
  • Triple Stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • Built-in Microphone
  • Multiple Dewarp Modes
  • Analytics+ Functions — People Counting and Queue Management
  • Intelligent Video System with Intelligent Business Analysis
  • Maximum IR Distance 10 m (33 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • 5-year Warranty (for products sold through an authorized Dahua dealer)
People Counting

The camera uses complex real-time people counting algorithms to count the number of people in up to four (4) distinct, user-defined regions. The function can trigger an alarm when a threshold setting is exceeded or when a wait time has exceeded a minimum time. People counting is ideal for measuring the number of customers entering or exiting a location and to monitor groups of people in a distinct location.

Queue Management

This Analytics+ function monitors four (4) user-defined regions where people wait in line (or queue). Queue Management triggers an alarm when the number of people in line exceeds a minimum threshold or when the time a person waits in line is greater than the minimum queue time. The function displays each target in real-time and offers various report output formats.

Intelligent Video System (IVS)

IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area.

Heat Map

The built-in IVS features heat map functionality that tracks and stores daily, weekly, monthly, and yearly people flow through a defined scene and produces a configurable report. The system uses this data to produce a Heat Map, a two-dimensional representation of data that provides an immediate visual summary of information.

Dewarping Mode

Fisheye dewarping solves the problem of distortion in the circular panoramic view. The camera offers multiple dewarping modes for different installations and configurations with a Dahua NVR or via the Web interface. Each dewarping mode offers options to adjust each scene.

Smart IR

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 10 m (33 ft).

High Efficiency Video Coding (H.265)

The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.


Dahua cameras operate in extreme temperature environments, rated for use in temperatures from –30° C to +60° C (–22° F to +140° F). The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Optional Accessories:
  • Ceiling Mount Bracket PFB300C
  • Corner Mount Bracket PFA151
  • Fisheye – PTZ Integrated Wall Mount Bracket DH-PFB410W
  • Fisheye Mount Adapter DH-PFA105
  • Junction Box DH-PFA132-E
  • Mount Adapter PFA110
  • Mount Adapter PFA100
  • Pole Mount Bracket PFA150
  • Wall Mount Bracket with Junction Box PFB302S
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:
Fish Eye
Smart H.265 Plus
Field of View (Horizontal):
Lens Size:
Lens Type:
Fixed Lens
NDAA Compliant:
Night Vision Range (ft):
12MP (4K)
Network (IP)
