Description

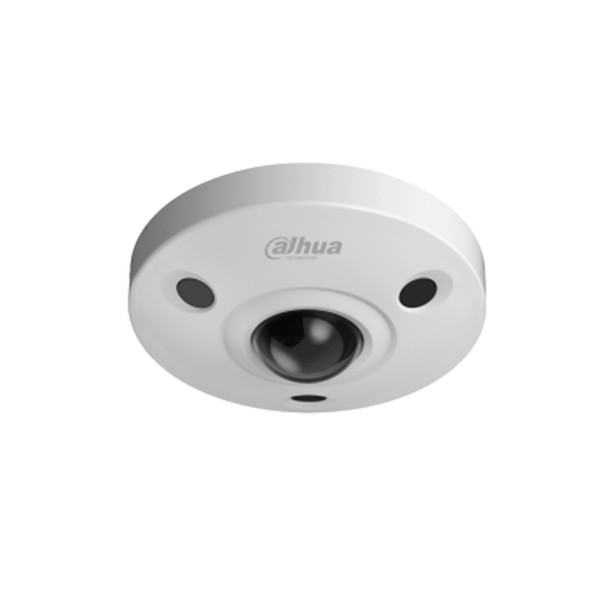

Dahua DH-IPC-EBW8630N M12 6MP Mobile Outdoor Fisheye IP Security Cameras
Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The progressive-scan sensor combined with a fisheye lens provide a high-quality 180° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers multiple dewarp modes for different installations and configurations that enhance the video for a specific scene. The IP67 environmental protection rating and the IK10 vandal resistance ensure the camera operates in the harshest environments.
Key features:
- 1/1.8-in. 6 MP Progressive-scan CMOS Sensor
- 6 MP (3072 x 2048) at 30 fps Maximum Resolution
- Triple-stream Encoding
- H.265 and H.264 Dual Codecs
- Multiple Dewarp Modes
- Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Intelligent Video System with Intelligent Business Analysis
- Maximum IR Distance 10 m (33ft)
- IP67 Ingress Protection, IK10 Vandal Resistance
- 5-year Warranty (for products sold through an authorized Dahua dealer)
Compatible Accessories:
- Mount Adapter PFA110
- Ceiling Mount Bracket PFB300C
- EOL: Pole Mount Bracket DH-PFA152
- Fisheye Mount Adapter PFA105
- Mount Adapter PFA100
- Wall Mount Bracket with Junction Box PFB302S
Downloads
Datasheet
Click to download!
Additional Information
|
Angle of View:
|
180 Degree
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Fisheye
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.265
H.264
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
1.7mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max. FPS and Resolution:
|
30fps at 3072 x 2048
|
|
Night Vision Range (ft):
|
33
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
