Description

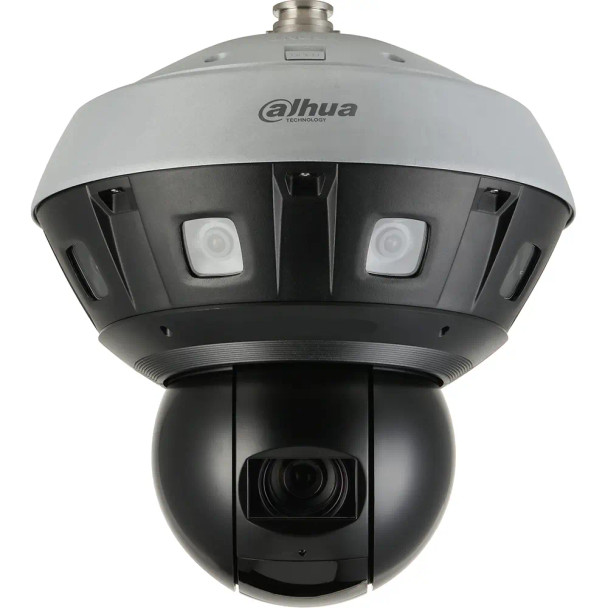

Dahua DH-PSDW81642M-A360 360° Multi-sensor IP Security Camera with 8x2MP Sensor with 5 mm Lens and 1x4MP PTZ Sensor with 5.6-223 mm Lens
The Dahua Multi-sensor Panoramic + PTZ Network Camera revolutionizes surveillance by combining eight 2MP sensors to create a comprehensive 360° panoramic view with an integrated 4MP high-speed PTZ camera for detailed focus on specific areas. This innovative all-in-one design provides complete situational awareness while delivering region-of-interest details simultaneously, replacing multiple single-sensor cameras for superior return on investment.
Built for extreme environments, this ArcticPro Series camera operates reliably in temperatures as low as -40°C (-40°F) with integrated heating elements and temperature-tolerant components. The IP66 weatherproof rating ensures protection against dust ingress and high-pressure water jets, making it ideal for the most demanding outdoor applications including parking lots, perimeters, and wide area surveillance.
Advanced WizMind Analytics+ technology delivers intelligent video analysis including Smart Tracking that automatically triggers the PTZ camera to zoom in and track objects when alarms are detected in the panoramic view. Additional features include crowd density monitoring, vehicle counting, and comprehensive tripwire and intrusion detection capabilities for enhanced security intelligence.
Key Features:
- Eight 1/1.8-inch 2MP CMOS sensors providing 360° panoramic coverage
- Integrated 4MP PTZ camera with 40x optical zoom (5.6-223mm)
- Smart Tracking technology integrating panoramic view with PTZ capabilities
- ArcticPro Series design operational down to -40°C (-40°F)
- 8192 x 1800 panoramic resolution at 30fps plus 4MP PTZ at 30fps
- WizMind Analytics+ with crowd density and vehicle counting functions
- Starlight technology for ultra-low light sensitivity
- IP66 weatherproof protection for outdoor installations
- Smart H.265+ compression reducing bandwidth and storage by up to 70%
- Five-year manufacturer warranty for long-term reliability
Downloads
Additional Information
|
Camera Style:
|
Multi-sensor
|
|
Compression:
|
Smart H.265+
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
15.08in x 15.35in x 15.08in
|
|
Power Supply:
|
36 VDC
|
|
Protection Code:
|
IP66
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
