Description

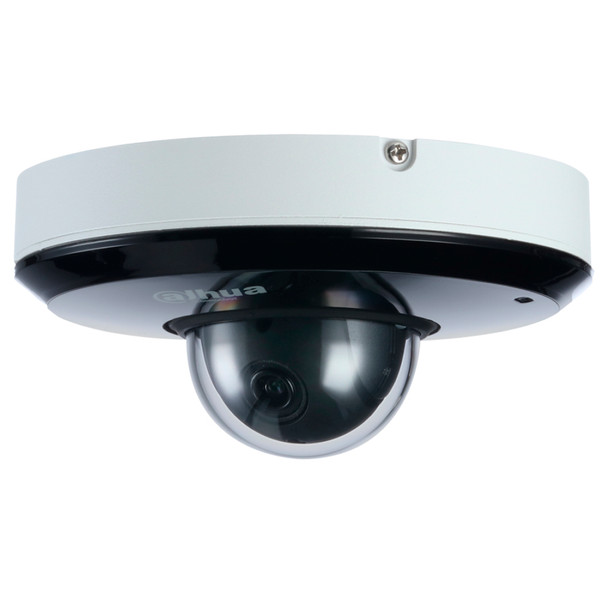

Dahua DH-SD1A203T-GN 2MP IR H.265 Starlight Outdoor PTZ IP Security Camera
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. The camera delivers 1080P resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications. Functions
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30°C to +60 °C (-22 °F to +140°F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.
The camera allows for 6KV lightning rating,which provides effective protection for both the camera and its structure against lightning. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer.
Key features:
- 2MP
- 1/2.8" STARVIS™ CMOS
- Powerful 3x optical zoom
- Starlight,
- WDR
- Max. 25/30fps@1080P
- H.265+ Compression
- IVS
- Support PoE
- IR distance up to 15m
- Weatherproof IP66
- ONVIF
- Dimensions: Φ128(mm) x 63(mm)
Optional Accessories:
- PFA107 Mount Adapter
- PFB305W Wall Mount
- PFB220C Ceiling Mount
- DC12V/2A Power Adapter
Note: It item is an international model. Not available in U.S.
Downloads
Additional Information
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compression:
|
H.265 Plus
H.264 Plus
H.265
MJPEG
H.264
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
105
35
|
|
Lens Size:
|
2.7~8.1mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Night Vision Range (ft):
|
49
|
|
Optical Zoom:
|
3x Optical Zoom
|
|
Protection Code:
|
IP66
IK08
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
