Description

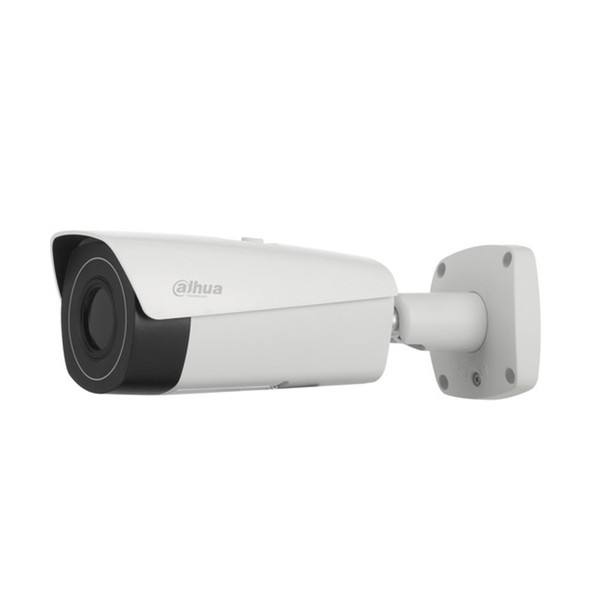

Dahua DH-TPC-BF5400N-B35 400 x 300 Thermal Outdoor Bullet IP Security Camera
The Dahua Thermal Network Bullet camera combines an uncooled VOx Microbolometer sensor with an athermalized lens to produce long-range thermal images. The camera produces clear images in total darkness, and delivers usable images in fog, rain, and snow, offering truly covert surveillance without the need for external light. The camera offers a Fire Detection and Alarm feature that identifies an abnormal rise in temperature and sends an alert to warn of a potential fire. Dahua thermal cameras are ideal for forestry, border security, and industrial applications.
Key features:
- 400 x 300 VOx Uncooled Thermal Sensor Technology
- Athermalized Lens, Focus-free
- 35 mm Fixed Thermal Lens
- < 40 mK Thermal Sensitivity
- Intelligent Video System with Fire Detection and Alarm Functionality
- Two Alarm Inputs, One Alarm Output
- Support for PoE and Micro SD Memory Storage
- Designed for Extreme Temperature Environments
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Compatible Accessories:
- Corner Mount Bracket PFA151
- Junction Box PFA121
- 12 VDC, 1 A Power Adapter DH-PFM321D-US
- Pole Mount Bracket PFA152-E
Downloads
Datasheet
TPC-BF5400-B7_eng-A1.pdf
Firmware
Dahua-DH-TPC-BF5400N-B35-Firmware-A1
Firmware
DH-TPC-BF5400N-B35-Core
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Fire Detection
|
|
Audio Compression:
|
G.711a
G.711Mu
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
PSIA
CGI Conformant
|
|
Compression:
|
H.264
MJPEG
|
|
Detect (ft):
|
4265
|
|
Digital Zoom:
|
19
|
|
Dimensions:
|
291.0 x 103.80 x 97.20 mm (11.46 x 4.09 x 3.83 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
11.1
|
|
Identify (ft):
|
525
|
|
Languages:
|
English
|
|
Lens Size:
|
35mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
11 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1280 x 1024
|
|
Max. Storage Capacity:
|
256 GB
|
|
Mobile Apps:
|
Android
iOS
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
24 VAC
12 VDC
PoE
|
|
Protection Code:
|
IP67
|
|
Recognize (ft):
|
1050
|
|
Remote Users:
|
Up to 20
|
|
Resolution:
|
400 x 300
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Type:
|
Thermal Sensor
|
|
Serial Interface:
|
1x RS485
|
|
Specialized Camera Feature:
|
Thermal
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Technology:
|
Network (IP)
|
|
Thermal Sensitivity:
|
NETD <40 mK
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer 11
Chrome
Firefox
|
