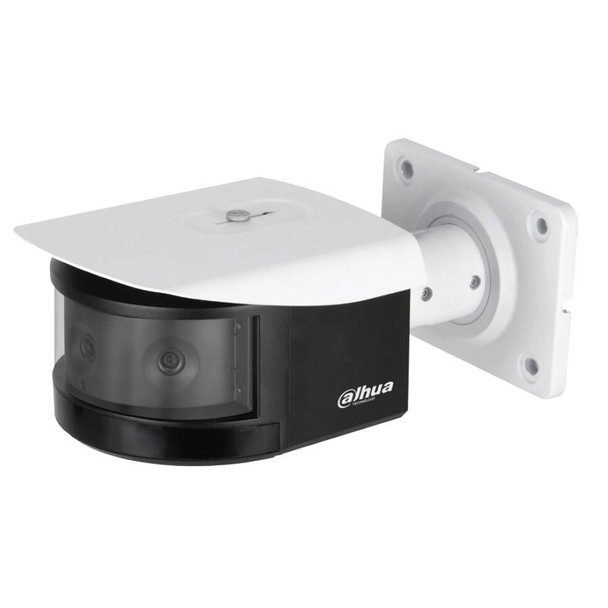

Dahua OEM IPC-PFW8601N-A180 Multi-Sensor 3x 2MP IR Outdoor Bullet IP Securtiy Camera - NTSC, HNC7V761

Dahua OEM IPC-PFW8601N-A180 Multi-Sensor 3x 2MP IR Outdoor Bullet IP Securtiy Camera - NTSC, HNC7V761

Hover over an image to enlarge

$1,485.00
In stock
+
IPC-PFW8601N-A180
Lens Size:3.6mm
Lens Type:Fixed Lens
Max. FPS and Resolution:30fps at 1080P
Resolution:2MP
Sensor Size:1/1.8"
Sensor Type:CMOS
Technology:Network (IP)
Vandal Proof:Yes
Weatherproof:Yes
Product Bullets:H.265 Compression
Manufacturer:Dahua
Specialized Camera Feature:Multi-sensor

Add to buy list Add to comparison list
  • Shipping Estimate
  • Shipping Policy
  • Return Policy
  • Ask Question

Dahua OEM IPC-PFW8601N-A180 3x2MP IR Outdoor Bullet IP Securtiy Camera - HNC7V761

The multi-sensor camera provides added flexibility for capturing wide area video surveillance.With three 2MP sensors working in tandem to create a comprehensive 180-degree overview, the camera can replace multiple single-sensor cameras providing a higher return on investment. With the field of view being divided across the three sensors,adjustments can be made to each sensor for contrast and brightness, resulting in a crystal-clear panorama.

Key features of Dahua OEM IPC-PFW8601N-A180

  • Three 1/2.8″ 2 Megapixel progressive scan Exmor R CMOS
  • 3.6mm Fixed Lens,
  • Support H.265 & H.264 dual encoding
  • Smart triple streams supported
  • Max 25/30fps@4096x832
  • Support 180-degree panoramic view
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC,
  • WDR 120dB
  • Smart detection
  • Intelligent Function
  • Max. IR LEDs length 98 ft
  • NTSC,
  • IP67, IK10,
  • PoE+
  • ONVIF, PSIA, CGI

Please note: "N version is same as non-N version. N means NTSC for North America version. P version is PAL which is commonly used in Europe."

Disclaimer:

This is a non-branded OEM version of the Dahua product line. Non-branded products are identical to the brand products except for the OEM part number and the removal of the logo.

OEM Part #: HNC7V761

Camera

Image Sensor

Three 1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

4096(H)x832(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.007Lux/F1.8( Color,1/3s,30IRE)

0.05Lux/F1.8( Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

8

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6mm

Max. Aperture

F1.8

Angle of View

H: 180˚, V:44˚

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Detect

Observe

Recognize

52m(171ft)

21m(69ft)

10m(33ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map, E-PTZ

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4096×832/3840×780/2560×520/

1280x260/1024X208

Frame Rate

Main Stream: 4096x832(1~25/30fps)

Sub Stream: 1024X208 (1 ~ 25/30fps)

Third Stream: 1280x260 (1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 4Kbps~ 10Mbps

H.264: 8Kbps~ 16Mbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

AC24V, PoE+ (802.3at)(Class 4)

Power Consumption

<23W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

298.3mm×172.5mm×120.5mm

(11.74×6.79×4.74)

Net Weight

2.60kg(5.73lb)

Gross Weight

3.41 kg(7.52lb)

Specsheet (dahua-DH-IPC-PFW8601-A180_Datasheet_20170509-A1.pdf, 996 Kb) [Download]
