Description
Dahua N484E62C 4MP Basic Night Color (VU-More Color) Security System, Includes (6) 4MP Fixed Eyeball IP Cameras and (1) 4K 8-Channel NVR
The 4MP Basic Night Color (VU-More Color) Security System provides all the components to quickly install, configure, and employ a complete video security solution. The IP cameras offer the clarity of 4MP video and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug-and-Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.
Key Features:

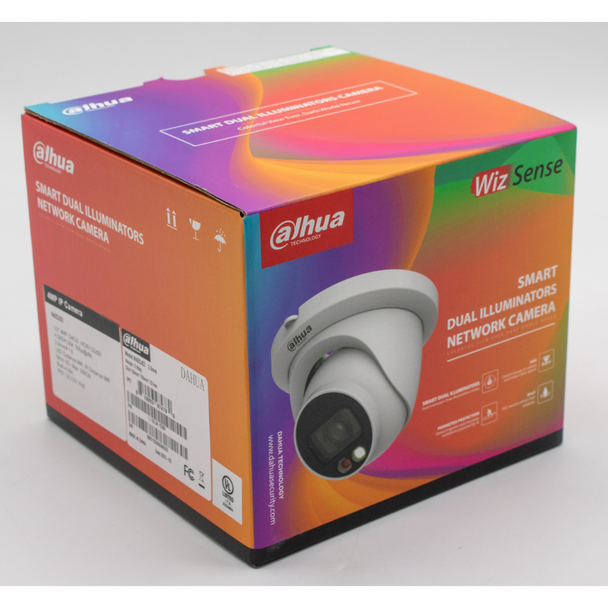

4MP Network Cameras:
- 4MP at 30 fps Maximum Resolution
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- 2.8 mm fixed lens
- Analytics+ Features - Smart Motion Detection+, Perimeter Protection, Intelligent Search
- Basic Night Color Technology
- Smart Dual Illumination — IR and White Light
- True WDR (120 dB) and Day/Night (ICR)
- Built-in Microphone
- IP67 Ingress Protection 4K

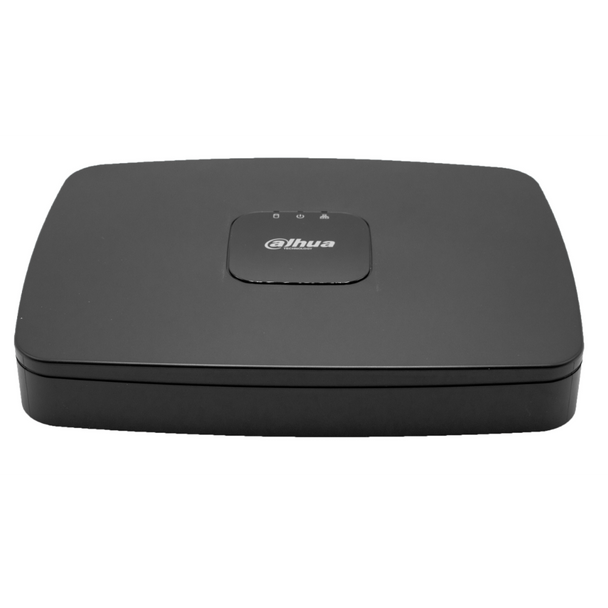

Network Video Recorder:
- 2 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 80 Mbps Recording Bandwidth
- Up to 8MP Resolution for Preview and Playback
Downloads
Datasheet
Dahua-N484E62C-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Smart Motion Detection+
Perimeter Protection
|
|
Aperture:
|
F1.6
|
|
Audio Output:
|
1x RCA
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Turret
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
FCC
|
|
Channel Capacity:
|
8 Channels
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Dimensions:
|
270.0 x 206.50 x 47.50 mm (10.63 x 8.12 x 1.80 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
95
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
IR LED Quantity:
|
2
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
10 Watts
|
|
Max. Incoming Bandwidth:
|
80Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
10 TB
|
|
Minimum Illumination (B/W):
|
0.0008 Lux
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.008 Lux at F1.6
|
|
Night Vision Range (ft):
|
98.43
49.21
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Number of Security Cameras:
|
6 camera system
|
|
Privacy Mask:
|
4 area
|
|
Protection Code:
|
IP67
|
|
RAM:
|
128MB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Specialized Camera Feature:
|
Dual Light (Infrared and Whitelight)
|
|
System Type:
|
Branded Security Camera System
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
