Dahua N64CL53 6MP IR ePoE Outdoor Dome IP Security Camera

Brand: Dahua
Part Number: N64CL53
Write a Review
  • Dahua N64CL53 6MP IR ePoE Outdoor Dome IP Security Camera
  • Dahua N64CL53 6MP IR ePoE Outdoor Dome IP Security Camera

Help me pick a security camera

Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.265 Plus,
  • Field of View (Horizontal) : 69°Field of View 48°Field of View
  • Max. FPS and Resolution : 20fps at 3072 x 2048
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.9" Sensor
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor

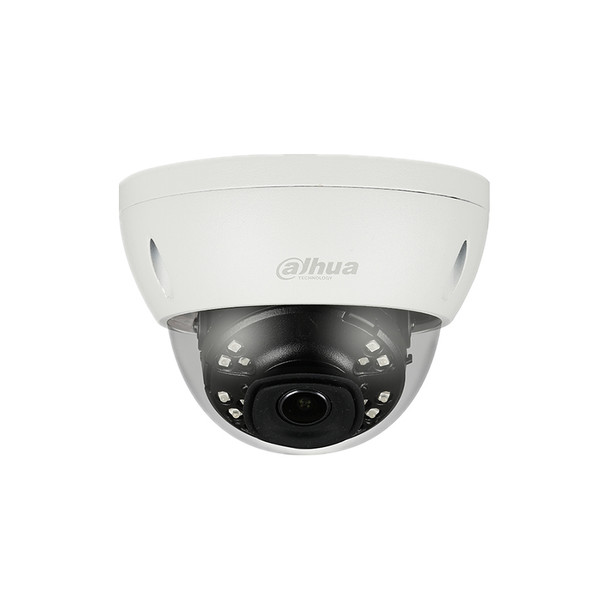

Dahua N64CL53 6MP IR ePoE Outdoor Dome IP Security Camera

The 6 MP camera features an advanced 1/2.9-in. Progressive-scan STARVIS imager with a fixed lens. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.

Key features:

  • 1/2.9-in. 6 MP Progressive-scan STARVIS CMOS Sensor
  • Triple-stream Encoding
  • Smart H. 265+ and H.264 Dual Codecs
  • 6 MP at 20 fps or 4 MP at 30 fps, Maximum Resolution
  • 2.8 mm Fixed Lens
  • Enhanced Power and Data Transmission Distances with ePoE
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Length 30 m (98ft) with Smart IR
  • IP67 Ingress Protection
  • Intelligent Video System
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Compatible Accessories:
  • Wall Mount Bracket PFB203W
  • Junction Box PFA136
  • Sun/Rain Shield PFA200W
  • 12 VDC, 1 A Power Adapter DH-PFM321D-US
  • EoC Passive Converter LR1002
  • Single-port EoC Receiver LR1002-1EC
  • Pole Mount Bracket PFA152-E


Datasheet Click to download!

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:
Compatible Integration (API):
H.265 Plus
Vandal Proof Weatherproof
Field of View (Horizontal):
69 48
Lens Size:
Lens Type:
Fixed Lens
Max. FPS and Resolution:
20fps at 3072 x 2048
Night Vision Range (ft):
Night Vision Type:
Night Vision (IR)
Product Series:
Dahua Pro Series Dahua ePOE Series
Protection Code:
SD Card Support:
SD Card Supported
Sensor Size:
Sensor Type:
Network (IP)
5-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
