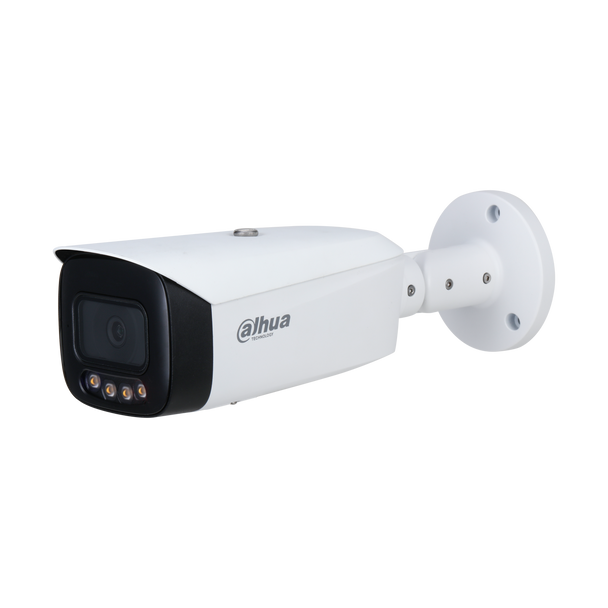

Dahua N85EFN2 8MP White-Light Outdoor Bullet Camera, 2.8mm Fixed Lens, White
WizMind Series devices offer Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products are ideal for complex applications with demanding requirements that need advanced analytic capabilities.
The Dahua 8MP ePoE Enhanced Night Color camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Enhanced Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
The camera uses complex real-time people counting algorithms to deliver accurate flow statistics from two distinct people counting functions, Line Crossing and Regional. The line crossing function counts the number of people crossing a defined line, and the regional function counts the number of people in a distinct, user-defined area. People counting is ideal for measuring the number of customers entering or exiting a location and to monitor groups of people in a distinct location.
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as –40° C (–40° F) without the need for an internal heater. The lack of a heater reduces the camera’s power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.
Key Features:
- 1/1.2-in. 8MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- AI Coding, Smart H.265+ and Smart H.264+ Video Compression
- 8MP (3840 x 2160) at 30 fps, 2.8 mm Fixed Lens
- Ultra Wide Dynamic Range (140 dB)
- Built-in Microphone and Speaker
- Analytics+ Functions — People Counting, Perimeter Protection,
- Smart Motion Detection+, and Face Detection
- Enhanced Night Color Technology with White-light LEDs for Color
- Images in Total Darkness
- Enhanced Power and Data Transmission Distances (ePoE)
- IP67 Ingress Protection
- Five-year Warranty
Downloads
Compatible products
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
Face Detection
Line Crossing
Smart Motion Detection+
People Counting
Perimeter Protection
|
|
Aperture:
|
F1.0
|
|
Audio Compression:
|
G.711a
G.711Mu
G.723
G.726
PCM
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Audio Support:
|
Built-in Microphone
Built-in Speaker
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
CGI Conformant
P2P
|
|
Compression:
|
AI Coding
Smart H.265 Plus
H.265
Smart H.264 Plus
H.264
H.264B
H.264H
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
271.7
|
|
Dimensions:
|
288.40 x 94.40 x 84.70 mm (11.35 x 3.72 x 3.22 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
112
|
|
IR LED Quantity:
|
4
|
|
Identify (ft):
|
27.2
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
|
|
Lens Mount:
|
M22
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
9.4 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Mounting:
|
Wall Mount
Pole Mount
Ceiling Mount
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
108.6
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
ePoE
|
|
Product Series:
|
Dahua ArcticPro Series
Dahua WizMind Series
Dahua Pro Series
|
|
Protection Code:
|
IP67
|
|
RAM:
|
1GB
|
|
Recognize (ft):
|
54.5
|
|
Remote Users:
|
Up to 20
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.2"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Dahua Night Color Technology
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
