Description
Dahua SD22204T-GN 2MP Outdoor Mini PTZ IP Security Camera - 4x Optical Zoom
The Dahua SD22204T-GN mini-PTZ indoor or outdoor camera comes with a 2.7~11mm lens. Being a mini-PTZ, this camera has 16x digital zoom capability and pan/tilt functionality. This allows the user to shift the focus of the lens and also aim the camera to different locations as desired.
This camera comes with day/night capabilities. Low lux and DWDR technologies provide clear, black-and-white images out of otherwise dark settings. 3DNR - digital noise reduction - helps cut down on image fuzz. This camera comes with IP66 protection standards, keeping it safe from inclement weather conditions. Similarly, IK10 protection standards keep this camera resistant to high energy, kinetic impacts.
Key Features:
- 2MP CMOS
- 2.7~11mm Lens
- 4x Optical Zoom, 16x Digital
- Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
- 300 Presets
- 5 Pattern, 8 Tour, Auto Pan/Scan
- 30fps @ 1080p
- Progressive scanning
- Low Lux & WDR technology
- Day/Night capabilities
- 3DNR, BLC, HLC
- H.264 & MJPEG dual-stream encoding
- Power over Ethernet
- ONVIF compatibility
- Privacy masking up to 24 areas
- Max 20 users
- Micro SD, Max 128GB
- Max 10W

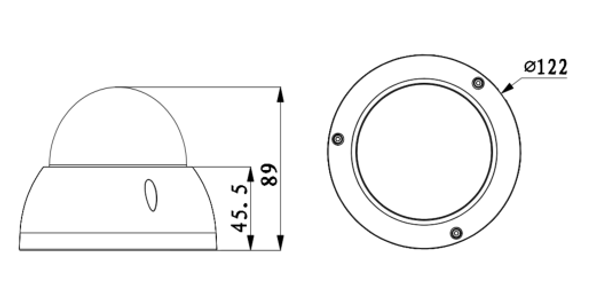

- Dimensions, 122mm x 89mm
- Weather and Vandalproof
Downloads
Datasheet
dahua-sd22204t-gn-specsheet-A1.pdf
Additional Information
|
Angle of View:
|
180 Degree
|
|
Camera Style:
|
Mini PTZ
PTZ
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.264 Plus
MJPEG
H.264
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Settings:
|
Privacy Mask
|
|
Lens Size:
|
2.7~11mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
128 GB
|
|
Optical Zoom:
|
4x Optical Zoom
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
