Dahua SD6C230S-HN 2MP IR Outdoor PTZ IP Security Camera

The Dahua SD6C230S-HN PTZ indoor or outdoor camera comes with a 4.3~129mm lens. Being a PTZ, this camera has 16x digital zoom capability and pan/tilt functionality. This allows the user to shift the focus of the lens and also aim the camera to different locations as desired. It also has multiple network monitoring using web viewer, CMS & DMSS. The PTZ camera is supported with intelligent 3D positioning utilizing the DH-SD protocol.

This camera comes with day/night capabilities with IR up to 330ft. Low lux and DWDR technologies provide clear, black-and-white images out of otherwise dark settings. 3DNR - digital noise reduction - helps cut down on image fuzz. Coming with IP66 protection standards, this camera can stand up to inclement weather conditions.


What is the biggest difference between Dahua SD6C220S-HN and Dahua SD6C230S-HN?

The ZOOM. The SD6C230S-HN comes with a 30x optical zoom while the SD6C220S-HN comes with a 20x.

Key Features of the Dahua SD6C230S-HN

  • 2MP CMOS
  • 4.3~129mm Lens
  • 30x Optical Zoom, 16x Digital
  • 30fps @ 1080p
  • 60fps @ 720p
  • Pan: 0° ~ 360°; Tilt: 0° ~ 90°, auto flip 180°
  • 300 Presets
  • Powers up to previous settings
  • 5 Pattern, 8 Tour, Auto Pan/Scan
  • Progressive scanning
  • Low Lux & WDR technology
  • Day/Night capabilities
  • IR up to 330ft
  • 2/3DNR, BLC, HLC
  • H.264 & MJPEG dual-stream encoding
  • ONVIF compatibility
  • Privacy masking up to 24 areas
  • Audio 1/1 channel in/out
  • Alarm 2/1 channel in/out
  • Max 20 users
  • Micro SD, Max 64GB
  • 10.5W, 26W (IR/Heater on)
  • Weatherproof

Product Type:
3-year Manufacturer Warranty
Indoor and Outdoor

Security Camera Features

Lens Size:
Lens Type :
Motorized (Automatic Zoom) Lens
Max. FPS and Resolution:
30fps at 1080P
Sensor Size:
Sensor Type:
Network (IP)
Camera Style:
  • PTZ
Technical Specs

Model DH-SD6C230S-HN
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1944(H) x 1092(V)
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4
S/N Ratio More than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Focal Length 4.3mm~129mm(30x Optical zoom)
Max Aperture F1.6 ~ F5
Focus Control Auto / Manual
Angle of View H: 65.1° ~ 2.34°
Close Focus Distance 100mm~ 1000mm
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 80(DH-SD), 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 100m (2 near IR LED+ 4 far IR LED)
Compression H.264 / MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF
Frame Rate Main Stream 1080P (1 ~ 25/30fps) / 720P(1~50/60fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 1
Alarm 2/1 channel In/Out
Power Supply AC 24V/2.2A (±10%)
Power Consumption 10.5W, 26W (IR on, Heater on)
Working Environment -40ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66

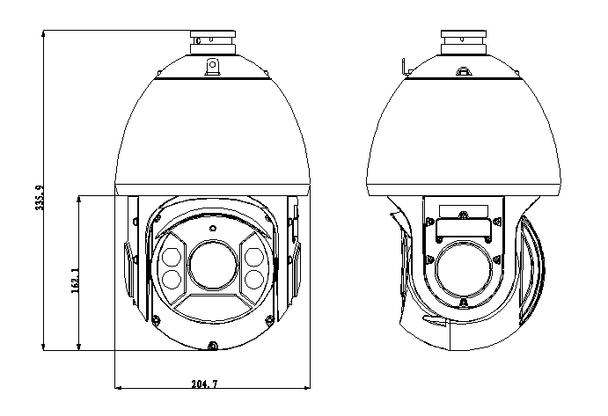

Dimensions Φ204.7(mm) x 359.9(mm)
Weight 7.8kg

dahua-sd6c220-230-s-hn-specsheet-A1 (dahua-sd6c220-230-s-hn-specsheet-A1.pdf, 826 Kb) [Download]
