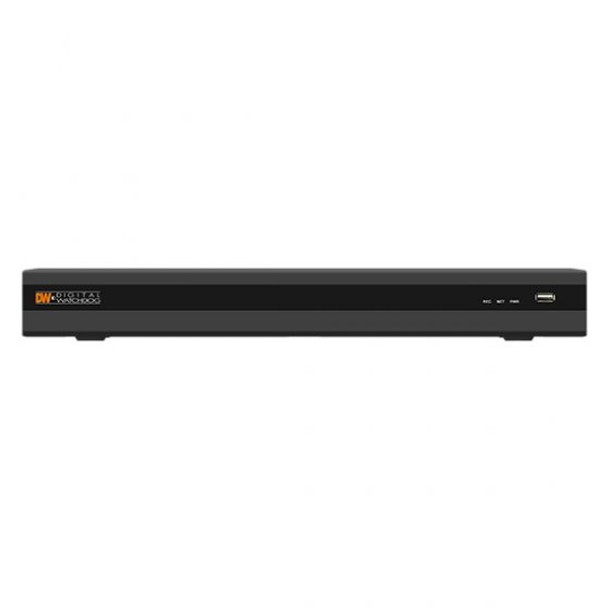

Digital Watchdog DW-VA1G4820T A1 G4 Universal HD over Coax 8-channel DVR, 20TB Hard Drive included
VMAX® A1 G4™ is an embedded DVR that records standard analog, HD-Analog and HD-TVI formats at up to 4K resolution and 4K local video output. The DVR is a seamless upgrade to HD resolution for new ROI from existing coaxial infrastructure. Up the Coax (UTC) remote configuration is available with all compatible cameras. The 8-channel VMAX A1 G4 model is NDAA and TAA compliant, and is available with up to 32TB of storage.
Key Features:
- Universal HD over Coax® DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution
- Advanced H.265, H.264 Linux® embedded DVR
- 8-channels, 240fps real-time 30fps recording
- Up to 4K recording resolution at 56fps (7fps per channel)
- PathFinder™ easy remote connection
- Remote management with C3™ CMS
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iOS® and Android® devices
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects the camera signal automatically
- Instant channel swap, no need to disconnect or reboot the DVR
- Snapshot Notify™: programmable interval snapshot email notifications
- 4K (3840 x 2160) True HD, VGA and CVBS video outputs
- Up to 32TB internal storage
- Transfer real-time data using Real Time Streaming Protocol (RTSP)
- HDD calculation and auto-recording configuration
- Thumbnail search with hour and 5-minute previews
- 10-second jump buttons for playback and fast forward
- Event notifications via email, C3™ CMS and push notifications
- Compatible with DW® Spot™ Monitoring module for Public View Monitors
- 8 audio inputs, 1 audio output
- 8 sensor inputs, 2 relay outputs
- Simple and free DDNS service
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- NDAA/TAA compliant
- 5 year limited warranty
Downloads
Quick Start Guide
Digital-Watchdo-DW-VA1G4820T-Quick-Start-Guide-A1
User Manual
Digital-Watchdo-DW-VA1G4820T-User-Manual-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
8 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Compression:
|
ADPCM
|
|
Audio Input:
|
8 Channels
|
|
Audio Output:
|
1x Channel
|
|
Certifications:
|
CE
FCC
KC
|
|
Channel Capacity:
|
8 Channels
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.264
H.265
|
|
Connection Type:
|
Wired
|
|
DDNS Functionality:
|
Free DDNS
|
|
Dimensions:
|
380 x 268.8 x 45 mm (14.96 x 10.58 x 1.77 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
LED Indicator:
|
Power LED
Status LED
|
|
Max Power Consumption:
|
48 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Max. Recording Resolution:
|
4K
|
|
Max. Storage Capacity:
|
32 TB
|
|
Mobile Apps:
|
DW Mobile Plus
|
|
Mounting:
|
Rack Mount
|
|
Network Interface:
|
1x RJ-45 1000 Mbps Port
|
|
Power Supply:
|
12 VDC
|
|
Pre-Installed Storage:
|
20 TB
|
|
Product Series:
|
Digital Watchdog Universal HD over COAX Series
Digital Watchdog VMAX A1 G4 Series
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Relay Output:
|
2 Channels
|
|
Serial Interface:
|
1x RS485
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x CVBS
1x HDMI
1x VGA
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
