Description

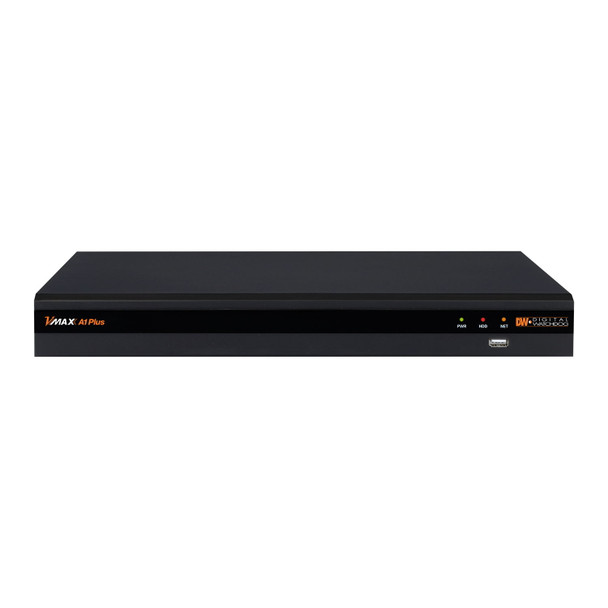

Digital Watchdog DW-VA1P1610T 16 Channel Digital Video Recorder
VMAX A1 Plus DVRs support HD-Analog and HD-TVI signals up to 5MP, and CVBS up to 960H. The DVRs offer a seamless upgrade to HD resolution for new ROI from existing coaxial infrastructure. The VMAX A1 Plus can record 1080p video at real-time 30fps. Up the Coax (UTC) remote configuration is available with all compatible cameras. The VMAX A1 Plus DVRs are available in 16-channel models with up to 20TB of storage.
Recommended app: DWPlus App
To download the app, search 'DW®' or 'VMAX Plus' in the Google Play Market or Apple App Store.
Key Features:
- Universal HD over Coax® DVR records HD-Analog and HD-TVI and all analog up to 960H signals
- Advanced H.264 Linux® embedded DVR
- 16-channels, real time 30fps recording up to 5MP
- Up to 5MP recording resolution at 160fps
- PathFinder™ Peer-to-Peer (P2P) remote connection
- C3™ CMS and event server software up to 288Channels
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iPhone®, iPad®, iPod®, Android® Smart Phones and Tablets and Apple TV®
- Mac® compatible remote ACS software
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects any camera at HD-Analog, HD-TVI and 960H automatically.
- Instant channel swap, no need to disconnect or reboot the DVR.
- Snapshot Notify™: programmable interval snapshot notifications
- 4K (3840 x 2160) True HD, VGA and Spot video outputs
- 2TB - 20TB storage options
- HDD calculation and auto recording configuration
- Thumbnail search with hour and 5-minute previews
- 10 second jump buttons for playback and fast forward
- Event notifications via e-mail and C3™ CMS and push notifications to mobile devices
- Multiplex - live, playback, recording, backup, network, configuration
- 4 audio input, 1 audio output
- 4 sensor input, 1 relay output
- Digital spot monitoring output at D1 resolution
- Simple and free DDNS service
- Push notifications via DW® VMAX® Plus™ app
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- 5 year limited warranty
Optional Accessories:
- DW-VAP19RE Rack mount ears 19"
- DW-BALUNHD HD video balun converter
Downloads
Specifications
VIDEO | ||
Signals supported | Analog signal up to 960H, HD-Analog and HD-TVI up to 5MP | |
Input video | 16 channels | |
Video live | Frame rate | 1-30fps, max 240fps total |
Resolution | HD-analog and HD-TVI to 5MP and all CVBS analog resolutions up to 960H | |
Video output | 4K True HD, VGA and Spot outputs | |
Audio | Input | 4 input |
Output | 1 output | |
Codec | ADPCM | |
Alarm | Alarm input | 4 input |
Alarm output | 1 output | |
Operating system | Embedded Linux® | |
Serial | 1x RS485 for keyboard and PTZ control | |
User interface | Menu display | Graphical user interface (GUI) |
Control method | IR remote control (optional), USB mouse | |
Screen display mode | 1, 4, 9, 10, 13, 16 and sequence | |
Screen resolution | HDMI: 2560x1440, 3840×2160 (4K), 800x600, 1024x768, 1280x1024, 1920x1080 VGA: 800x600, 1024x768, 1280x1024, 1920x1080 Spot: D1 | |
PERFORMANCE | ||
Recording | Compression | H.264 |
Recording mode | Continuous, schedules, sensor-activated, motion detection, pre and post alarm, emergency, quick backup | |
Pre-recording | 0~5 seconds | |
Post-recording | 0~5 minutes | |
Recording rate | 960x480/576 (960H): 480fps 1280x720 (HD): 480fps 1920x1080 (HD): 480fps 2560x1600 (4MP): 240fps 2560x1944 (5MP): 160fps | |
Recording resolutions | HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H | |
Playback | Playback rate | 960x480/576 (960H): 480fps 1280x720 (HD): 480fps 1920x1080 (HD): 480fps 2560x1600 (4MP): 240fps 2560x1944 (5MP): 160fps |
Playback resolution | HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H | |
Fast forward functions | x1, x2, x4, x8, x16, x32 | |
Playback functions | Intelli-search by time bar, calendar (date and time), event search and thumbnail search | |
Storage | HDD interface | 2x SATA HDD |
Max. internal storage | Up to 20TB | |
HDD interface type | SATA | |
HDD health check | Temperature, S.M.A.R.T. with e-mail notifications | |
Features | Camera color control | Via UTC |
Digital zoom | Live and playback | |
Software upgrade | USB flash drive, network upgrade, FTP remote upgrade | |
Mobile client | Mobile app for Apple® and Android® smartphones and tablets and Apple TV® | |
Covert channel | Yes (live and playback) | |
NETWORK | ||
Network connection | Ethernet (1 x Gigabit) | |
Streaming | Transmission speed live | 960x480/576 (960H): 480fps 1280x720 (HD): 480fps 1920x1080 (HD): 480fps 2560x1600 (4MP): 240fps 2560x1944 (5MP): 160fps |
Protocol | Fixed IP, DHCP, UPnP, DDNS | |
Access | Web viewer | Live, playback and configuration, up to 10 multiple connections |
Client monitoring software | Mac® (Apple® S/W), C3™ (CMS S/W) | |
GENERAL | ||
Operating temperature / humidity | 41°F ~ 104°F (5°C ~ 40°C), less than 80% (non-condensing) | |
Electrical | Power requirement | 12V DC |
Power consumption | 60W, 5A | |
Dimensions | 15.15" x 12.4" x 1.88" (385 × 315 × 48 mm) (1U) | |
Weight | 2.64 lbs (1.2kg) | |
Certification | CE and FCC and KCC and WEEE, RoHS | |
Warranty | 5 years limited | |
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alternative SKUs:
|
DW-VA1P16xT
|
|
Channel Capacity:
|
16 Channels
|
|
DDNS Functionality:
|
Free DDNS
|
|
Max. Recording Resolution:
|
5MP (3K)
|
|
Pre-Installed Storage:
|
10 TB
|
|
Product Series:
|
Digital Watchdog VMAX A1 PLUS Series
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
