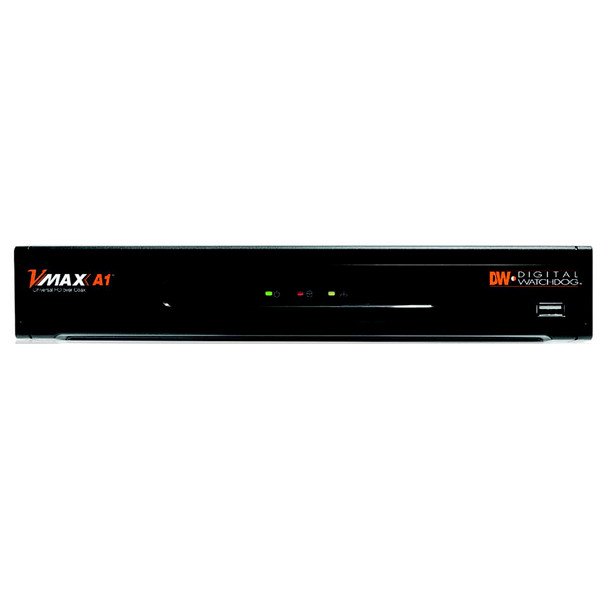

Digital Watchdog DW-VAONE46T 4 Channel Digital Video Recorder - 6TB HDD included
- Compression : H.264,
- Pre-Installed Storage : 6 TB
- Max. Recording Resolution : 2MP
- Hard Drive Ports : 1 SATA Port
- Max. Storage Capacity : 8 TB Storage Capacity
Description
Digital Watchdog DW-VAONE46T 4 Channel Digital Video Recorder
The VMAX A1™ Digital Video Recorder supports all HD over Coax formats and all analog to 960H, offering a seamless upgrade to HD resolution. Up the Coax (UTC) remote configuration is available with all compatible cameras. The A1™ is available with up to 16TB of storage.
Key features of Digital Watchdog DW-VAONE46T
- Universal HD DVR Records all HD Analog Formats and All Analog to 960H
- Real Time 30fps Recording up to 1080p
- Support up to 3MP HD Analog Cameras (Limited Support)
- Pivot™ Central Management Software up to 128 Channels
- Event Camera Group Recording
- Mobile Application for iPhone®, iPad®, iPod®, Android® Smart Phones and Tablets and Apple TV
- Mac® Compatible Remote ACS Software
- VMAX 2.0 Intuitive Graphical User Interface (GUI)
- OSD and PTZ Control via Coax (UTC)
- Signal Hybrid Detects Any Camera at Any Input Automatically.
- True HD Output
- HDD Calculation and Auto Recording Configuration
- Event Notifications via Email, Text and Pivot™ CMS
- Advanced H.264 Embedded DVR
- Multiplex - Live, Playback, Recording, Backup, Network, Configuration
- 1 Audio Input, 1 Audio Output
- 1 Sensor Input, 1 Relay Output
- Digital Spot Monitoring Output at D1 resolution
- Simple & Free DDNS Service
- Easy Web-Based Client with Multi-User Access
- Help Menu on Major Functions
- Auto & Manual Firmware Upgrade Available
- 5 Year Limited Warranty
The VMAX A1 is the most simple way to upgrade an existing analog solution. With support for all 960H and below resolution Analog Cameras and Universal HD Coax Formats (1080p Resolution via Coax), the DVR can be integrated into an existing application without the need to update the cameras at the same time. This allows for optimal financial flexibility and ROI, with individual components of an entire solutions updated separately. | ![]() |
UTC (Up The Coax) allows a user to access the camera's OSD (On Screen Display) through a coaxial connection, eliminating the need for an additional RS485 cable to reach the menu. | ![]() |
Compatible Accessories:
- DW-VF19RE 19" Rack Mount Ears
- DW-BALUNHD HD Video Balun Converter
Downloads
Popular Search
Additional Information
4K Support: |
|
Channel Capacity: |
4 camera channels
|
Compression: |
H.264
|
Hard Drive Ports: |
1 SATA Port
|
Max. Recording Resolution: |
2MP
|
Max. Storage Capacity: |
8 TB
|
Pre-Installed Storage: |
6 TB
|
Recorder Technology: |
Digital Video Recorder (DVR)
|
Warranty: |
5-year Manufacturer Warranty
|
e-SATA: |
|
ePoE Technology: |
|
