Description

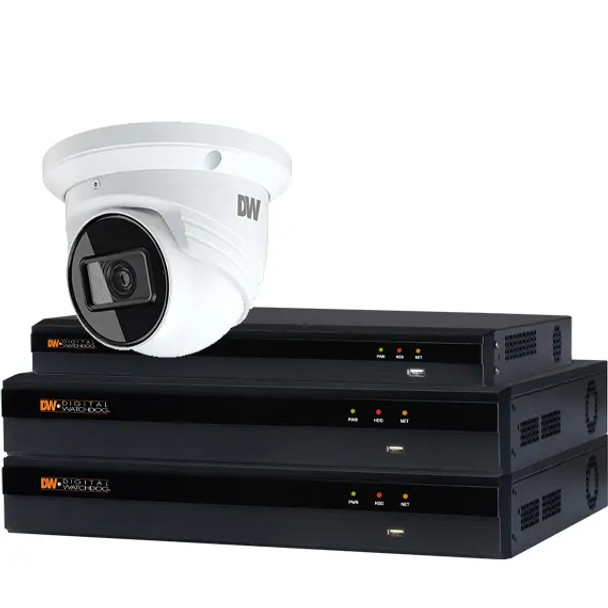

Digital Watchdog DW-VP16T9KIT212 16 Channel 4K(8MP) Network Video Recorder with 2TB HDD & 12 x 5MP Outdoor Vandal Turret IP Cameras
The DW-VP16T9KIT212 is a professional-grade surveillance system designed for businesses and organizations seeking high-resolution security monitoring. This system includes a 16-channel 4K(8MP) network video recorder (NVR) with 2TB of pre-installed storage, providing ample space for continuous recording and advanced video management. The NVR supports ONVIF compliance, ensuring seamless integration with third-party IP cameras and features a built-in power over ethernet (PoE) switch, allowing direct power supply to up to 16 cameras for simplified installation. The package includes twelve 5MP outdoor vandal-resistant turret IP cameras, delivering ultra-clear video at real-time 30fps with a 98.5-degree field of view and True Wide Dynamic Range (WDR) for optimal image clarity in diverse lighting conditions. Smart IR technology enhances night vision performance with a 100-foot infrared range, ensuring visibility in complete darkness, while built-in video analytics such as object classification, line crossing, perimeter intrusion detection, and video tampering alerts improve security monitoring. Built to withstand harsh conditions, the cameras are IP67-rated for water and dust resistance and IK10-rated for impact protection, making them ideal for outdoor environments.
Key Features:
- 16-channel 4K(8MP) network video recorder; supports up to 160Mbps throughput for high-quality recordings
- 2TB HDD included; provides extensive storage for continuous recording and video retention
- ONVIF compliance; integrates with third-party IP cameras for enhanced flexibility
- Twelve 5MP outdoor vandal turret IP cameras; delivers high-definition video with clear, detailed imaging
- IP67 and IK10-rated cameras; resistant to dust, water, and impact for maximum durability
- 2.8mm fixed lens; offers a broad field of view for effective area monitoring
- Smart IR technology; provides up to 100 feet of infrared night vision
- True Wide Dynamic Range (WDR); enhances image clarity in various lighting conditions
- Multiple compression formats; supports H.265, H.264, and MJPEG for improved storage efficiency
- Local PoE support; powers up to 16 cameras directly from the NVR for simplified installation
- Weather-resistant design; robust construction ensures reliable performance in outdoor environments
Downloads
Additional Information
Camera Style:
|
Turret
|
Channel Capacity:
|
16 Channels
|
Day/Night:
|
IR cut filter
|
Durability:
|
Vandal Resistant
Weather Resistant
|
Environmental:
|
Outdoor
|
Lens Size:
|
2.8mm
|
Lens Type:
|
Fixed Lens
|
Max. Storage Capacity:
|
32 TB
|
Number of Security Cameras:
|
12 camera system
|
Pre-Installed Storage:
|
2 TB
|
Protection Code:
|
IK10
IP67
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
Resolution:
|
5MP (3K)
|
Sensor Size:
|
1/2.7"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
