Description

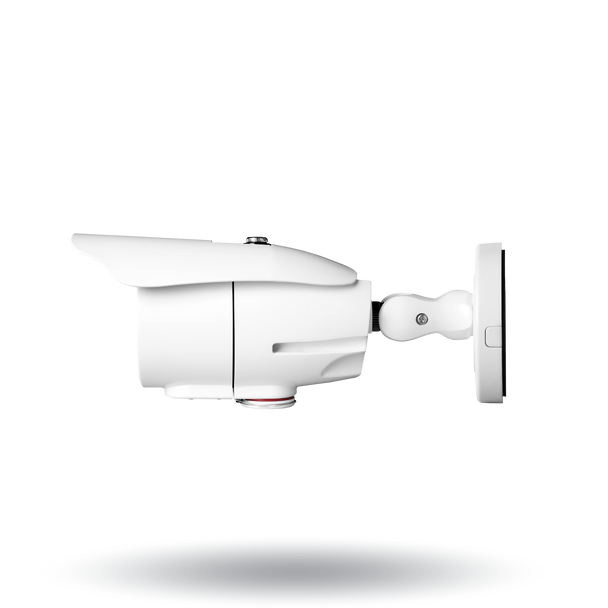

Digital Watchdog DWC-B6563WTIRW 5MP 3K Night Vision Outdoor Bullet HD CCTV Security Camera, 2,7~13.5mm Motorized Lens
Featuring Star-Light Plus™ color in near-total darkness, 5MP Star-Light Plus™ Universal HD over Coax® cameras are NDAA compliant and deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The weather resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW® Universal HD over Coax® cameras are engineered to work with our VMAX® A1 Plus™ DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Key Features:
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
Replacement of:
DWC-B6563WTIR
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Output:
|
1 Channel
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
8.83 x 3.81 in (224.5 x 96.7 mm)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
102
31.4
|
|
Image Enhancements:
|
Ultra Low Light
Auto Gain Control (AGC)
|
|
Iris:
|
P-iris
|
|
LED Indicator:
|
Status LED
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2592 x 1944
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.08 Lux
|
|
Mounting:
|
Pole Mount
Wall Mount
Ceiling Mount
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
2D DNR
|
|
Optical Zoom:
|
5x Optical Zoom
|
|
Power Supply:
|
12 VDC
24 VAC
|
|
Product Series:
|
Digital Watchdog Universal HD over COAX Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/30000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
Digital Watchdog Universal HD over Coax
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
