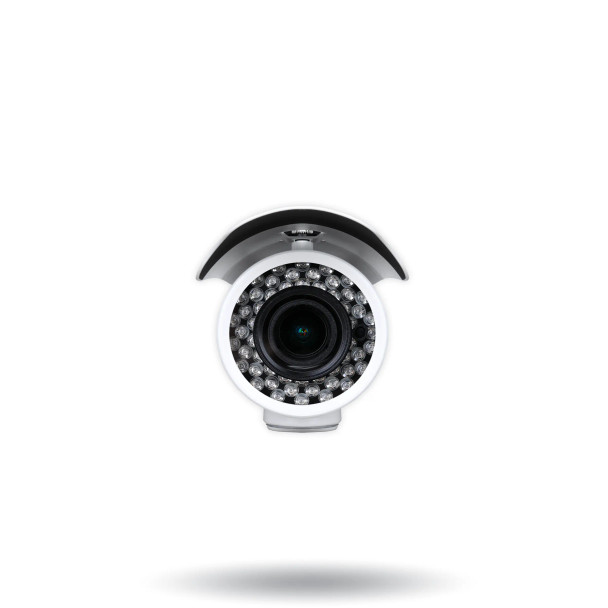

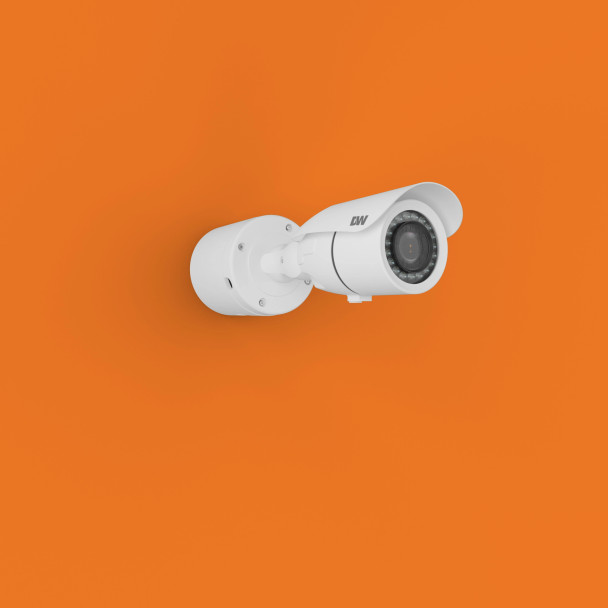

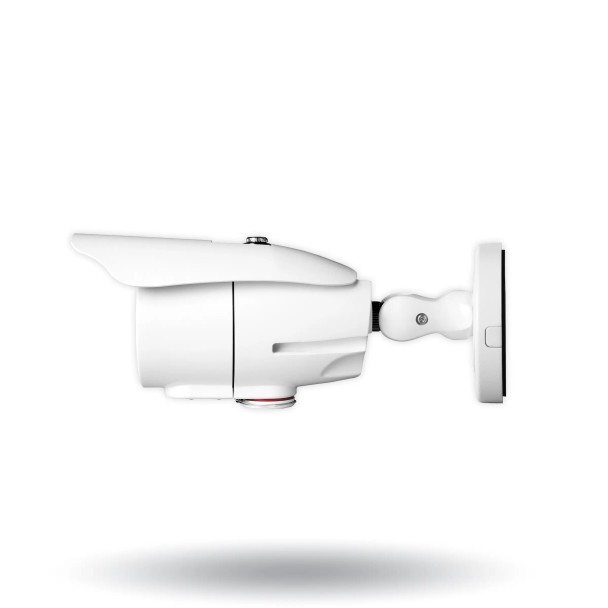

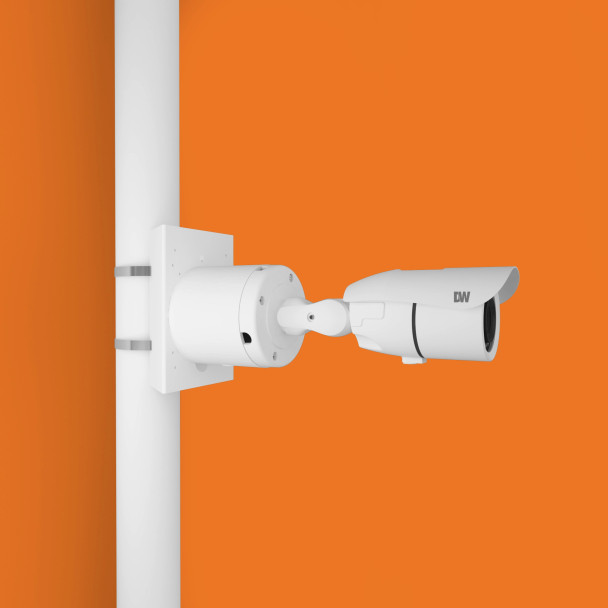

Digital Watchdog DWC-B6853WTIRW 8MP 4K Outdoor IR Bullet HD CCTV Security Camera
Featuring Star-Light Plus™ color in near-total darkness, the 4K Universal HD over Coax® camera DWC-B6853WTIRW is NDAA compliant, delivering crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal. The weather-resistant bullet camera DWC-B6853WTIRW is IP66 rated and can be controlled via the same coax cable using UTC. As Star-Light Plus™ 4K camera DWC-B6853WTIRW is engineered to work with our VMAX® A1 Plus™ and VMAX® A1 G4™ DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Key Features:
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 2.8mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
Replacement of:
DWC-B6853WTIR
Downloads
Additional Information
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
8.83" x 3.81" (224.5 x 96.7 mm)
|
|
Durability:
|
Dust Resistant
Water Resistant
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
4.2 Watts
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Smart IR
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
8MP (4K)
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/30000s
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
