Description

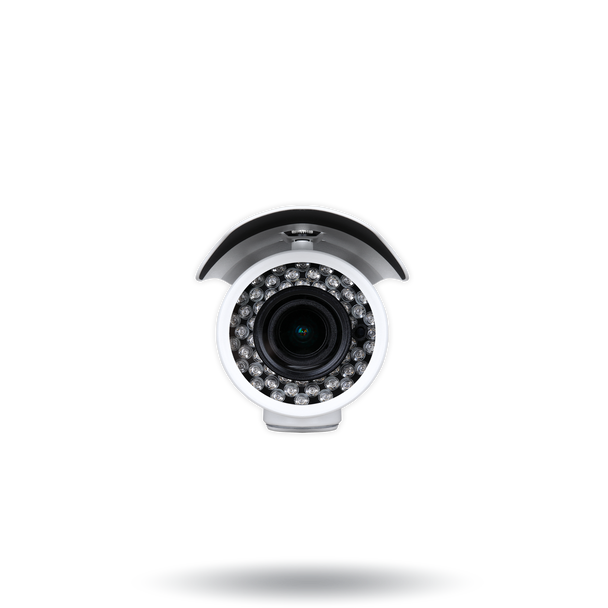

Digital Watchdog DWC-B6883WTIRW 8MP 4K Night Vision Outdoor Bullet HD CCTV Security Camera, 3.6~10mm Motorized Lens
Featuring Star-Light Plus™ color in near-total darkness, the 4K Universal HD over Coax® cameras are NDAA compliant, delivering crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal. The weather-resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All Star-Light Plus™ 4K cameras are engineered to work with our VMAX® A1 Plus™ and VMAX® A1 G4™ DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Key Features:
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 150' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with a built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
Replacement of:
DWC-B6883WTIR
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Day/Night:
|
Day (Color)
Night (B/W)
Auto
|
|
Dimensions:
|
252 x 96.7 mm (9.92 x 3.81 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
98.4
45.7
|
|
Image Enhancements:
|
Ultra Low Light
Auto Gain Control (AGC)
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
3.6~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
8.3 Watts
|
|
Max. FPS and Resolution:
|
15fps at 3840 x 2160
30fps at 2560 x 1440
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.09 Lux
|
|
Mounting:
|
Wall Mount
Ceiling Mount
Pole Mount
|
|
Night Vision Range (ft):
|
150
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
2D DNR
|
|
Optical Zoom:
|
2.8x Optical Zoom
|
|
Power Supply:
|
12 VDC
24 VAC
|
|
Product Series:
|
Digital Watchdog Universal HD over COAX Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
8MP (4K)
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/30000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
Digital Watchdog Universal HD over Coax
|
|
Technology:
|
HD CCTV
|
|
Video Output:
|
1x CVBS
1x BNC
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
