Digital Watchdog DWC-C223W 2.1MP Indoor Box HD CCTV Security Camera

Digital Watchdog DWC-C223W 2.1MP Indoor Box HD CCTV Security Camera

Star-Light™ Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.

Universal HD Coax® Technology supports All HD-Analog and All Analog to 960H

The Universal HD® Complete Solutions are the best way to upgrade an existing analog solution to high definition. Universal HD supports HD-Analog, HD-TVI, HD-CVI and CVBS analog signals to 960H.

---

Star-Light™ Super Low Light Technology

Star-Light™ Technology provides crisp clear images in both color and Black and White in extreme low light conditions. Star-Light technology offers a slow shutter feature that increases the length of time the shutter remains open to collect additional light, illuminating typically dark environments. The technology also utilizes Digital Noise Reduction and Highlight Masking Exposure to enhance the image clarity, offering a clear image in any lighting condition.

---

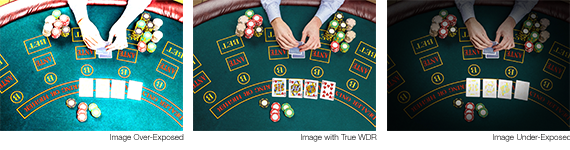

Wide Dynamic Range (WDR)

Wide Dynamic Range technology mechanically allows capturing an entire scene in challenging lighting conditions. One shutter is set to a short exposure, capturing the bright areas in the FoV, while the other is set for a long exposure, capturing the dark areas in the FoV. The camera then interlaces the images and combines them, capturing both areas with no loss of detail. This allows for an image capture even when there are very bright and dark areas in the camera's field of view or images are distorted by a strong backlight.

Key Features:

• Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
• STAR-LIGHT™ Super Low Light Technology
• 2.1MP 1/3" Image Sensor at Real-time 30fps
• Compatible with C/CS Mount Lens
• True Wide Dynamic Range (WDR)
• OSD Control Via Coaxial (UTC)
• Smart DNR™ 3D Digital Noise Reduction
• True Day/Night Mechanical IR Cut Filter
• De-Fog™ Extreme Weather Image Compensation
• Highlight Masking Exposure (HME)
• Auto Sensing 24VAC/12VDC with Line Lock
• Easy Icon Driven OSD Menu with Built-in Joystick
• Programmable Privacy Zones
• Auto Gain Control (AGC)
• Backlight Compensation (BLC)
• Dynamic Range Compressor (DRC) Reveals Low Light Detail
• Auto White Balance (AWB)
• 5 Year Warranty
