Description

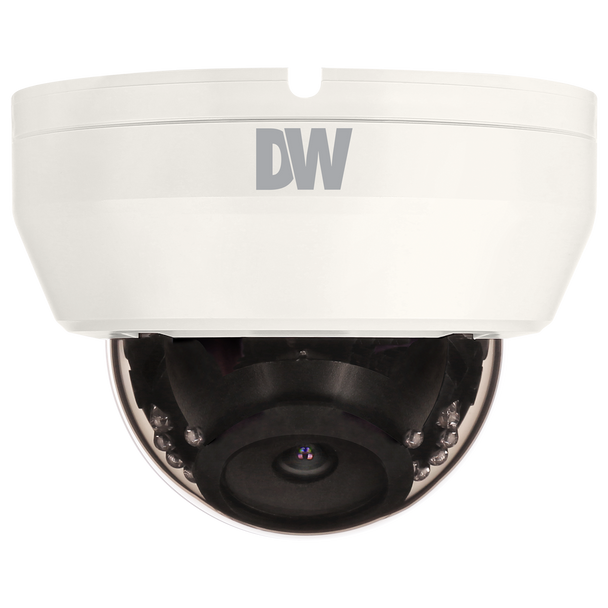

Digital Watchdog DWC-D3263WTIR 2.1MP IR Indoor Dome HD CCTV Analog Security Camera
Star-Light™ Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
The Universal HD® Complete Solutions are the best way to upgrade an existing analog solution to high definition. Universal HD supports HD-Analog, HD-TVI, HD-CVI and CVBS analog signals to 960H.
Star-Light™ Technology provides crisp clear images in both color and Black and White in extreme low light conditions. Star-Light technology offers a slow shutter feature that increases the length of time the shutter remains open to collect additional light, illuminating typically dark environments. The technology also utilizes Digital Noise Reduction and Highlight Masking Exposure to enhance the image clarity, offering a clear image in any lighting condition.
Key features:
- Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3" Image Sensor @ Real-time 30fps
- 2.8~12mm Varifocal P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- 100' Smart IR™ with Intelligent Camera Sync.
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- 5 Year Warranty
Compatible Products:
- DWC-GPLT Converter plate for electronic gang box - ivory
- DWC-GPLT-W Converter plate for electronic gang box - white
- DWC-D2WM Wall mount bracket for indoor dome cameras
Downloads
Videos
View AllClose
Compatible products
Additional Information
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
28
91
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Digital Watchdog Star-Light Series
Digital Watchdog Universal HD over COAX Series
|
|
Resolution:
|
2.1MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
