Description

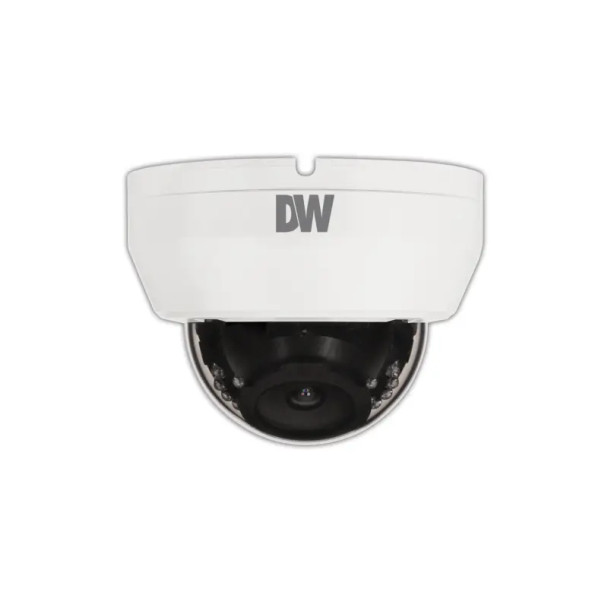

Digital Watchdog DWC-D3853WTIRW 8MP 4K Night Vision Indoor Dome HD CCTV Security Camera, 2.8mm Fixed Lens
Featuring Star-Light Plus color in near-total darkness, 4K Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI, HD-CVI and all legacy analog signals. The discrete indoor dome cameras can be controlled via the same coax cable using UTC. All Star-Light Plus 4K cameras are engineered to work with our VMAX A1 4K DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Key Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 2.8mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with a built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- 5 year warranty
Downloads
Quick Start Guide
Digital-Watchdog-DWC-D3853WTIRW-Quick-Start-Guide-A1
User Manual
Digital-Watchdog-DWC-D3853WTIRW-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Compliance:
|
NDAA Compliant
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
120 x 89.4 mm (4.72 x 3.51 in)
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
46.4
100.3
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
3.6~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Plastic
Poly-carbonate (PC)
|
|
Max. FPS and Resolution:
|
15fps at 3840 x 2160
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.1 Lux
|
|
Mounting:
|
Wall Mount
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Smart IR
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
2D DNR
|
|
Optical Zoom:
|
2.8x Optical Zoom
|
|
Product Series:
|
Digital Watchdog Universal HD over COAX Series
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
55 dB
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1/30-1/30000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
Digital Watchdog Universal HD over Coax
|
|
Technology:
|
HD CCTV
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
