Description

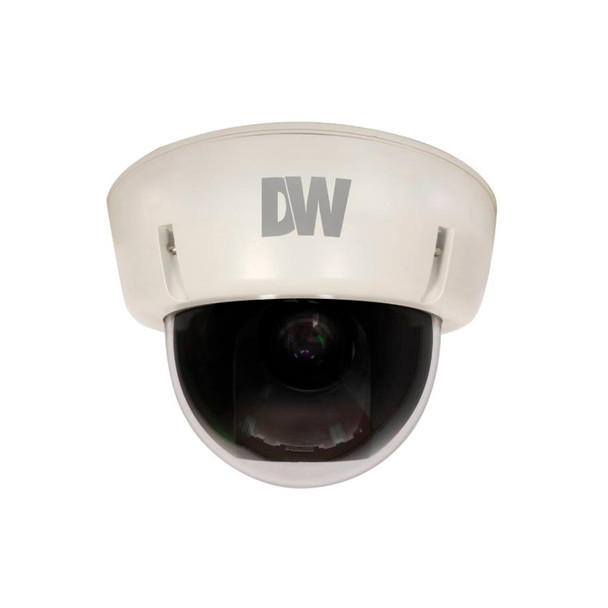

Digital Watchdog DWC-V5661T 1.3MP Outdoor Dome CCTV Analog Security Camera
The STAR-LIGHT™ MPA cameras are groundbreaking analog cameras that deliver up to 800TVL resolution thanks to their 1.3MP CMOS sensor. These cameras offer powerful features such as STAR-LIGHT™ super low light technology, CleanView™ self-cleaning dome technology, WDR, true day/night, QuickZoom™ technology without pixilation and De-Fog™ enhancement for extreme weather conditions.
Key features of Digital Watchdog DWC-V5661T
- 1/3″ Sony 1.3MP CMOS, 820TVL [B/W], 800TVL [Color]
- QuickZoom™ Full Frame 8x Digital Zoom with no Loss in Resolution
- STAR-LIGHT™ Super Low Light Technology
- Wide Dynamic Range (WDR)
- 2.8~12mm Varifocal Auto Iris Lens
- CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease (Outdoor Domes Only)
- Smart DNR™ 3D Digital Noise Reduction
- Highlight Masking Exposure (HME)
- De-Fog™ (Extreme Weather Image Compensation)
- Auto Sensing 24VAC/12VDC with Line Lock
- Secondary Video-BNC Output (While UTP in use)
- Easy Icon Driven OSD Menu with Built-in Joystick
- True Day/Night Mechanical IR Cut Filter
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Back Light Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- UTP Built-in
- RS-485 Built-in
- Motion Trigger Output (5V)
- IP66 Certified (Weather Resistant) - Outdoor Domes and Bullets only
Downloads
Datasheet
DWC-V5661T-InstallationManual-A1.pdf
Additional Information
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Product Series:
|
Digital Watchdog Star-Light MPA Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
1.3MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
CCTV (Analog CVBS)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
