Description

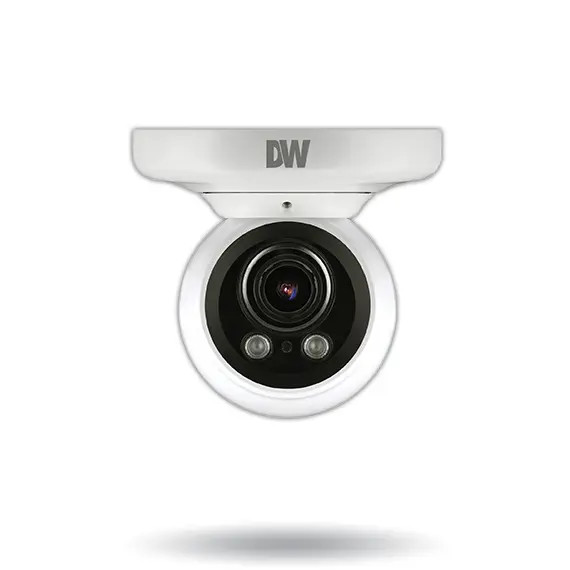

Digital Watchdog DWC-VA583WTIR 5MP ball HD CCTV Security Camera with 2.7~13.5mm motorized zoom and color in near-total darkness and IR
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The weather-resistant vandal ball cameras are IP66 rated, eliminate IR reflections, and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Key Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 80' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- IP67 dust-tight and water-proof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Replacement of:
DWC-T8563TIR
Downloads
User Manual
Digital-Watchdog-DWC-VA583WTIR-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Eyeball
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
125 x 122 mm (4.92 x 4.8 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
85
32
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Input Voltage:
|
12VDC
24VAC
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
7.6 Watts
6.27 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2592 x 1944
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.08 Lux
|
|
Night Vision Range (ft):
|
80
|
|
Noise Reduction:
|
3D DNR
2D DNR
|
|
Optical Zoom:
|
5x Optical Zoom
|
|
Product Series:
|
Digital Watchdog Star-Light Plus Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/30000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
