Description

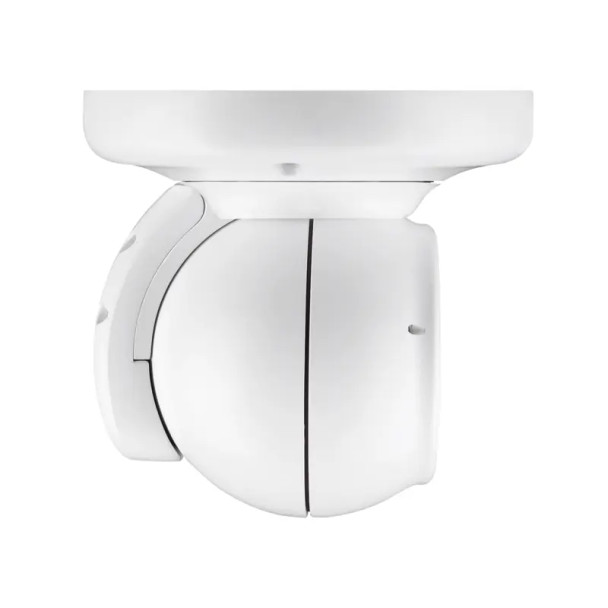

Digital Watchdog DWC-VA883WTIR 4K ball HD CCTV Security Camera with 3.6~10mm motorized zoom, color in near-total darkness and IR
Featuring Star-Light Plus color in near-total darkness, 4K Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal support. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections, and can be controlled via the same coax cable using UTC. All Star-Light Plus 4K cameras are engineered to work with our VMAX A1 4K DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Key Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 80' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Downloads
Quick Start Guide
Digital-Watchdog-DWC-VA883WTIR-Quick-Start-Guide-A1
User Manual
Digital-Watchdog-DWC-VA883WTIR-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Eyeball
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
3.6~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Night Vision Range (ft):
|
80
|
|
Product Series:
|
Digital Watchdog Star-Light Plus Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
55 dB
|
|
Sensor Size:
|
1/1.8"
|
|
Shutter Speed:
|
1/30-1/30000s
|
|
Special Technologies:
|
Digital Watchdog Star-Light Plus
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
