ENS ED9732H5NV-16P-A 32 Channel 4K Network Video Recorder with 16PoE Ports, No HDD included
$739.98
- Compression : H.265,
- Pre-Installed Storage : No HDD included
- Video Output : 1x HDMI 1x VGA
- Max. Recording Resolution : 8MP (4K)
- Hard Drive Ports : 8 SATA Ports
- Max. Storage Capacity : 64 TB Storage Capacity
- Color : Black
- Number of PoE Ports : 16 PoE Ports
Description
ENS ED9732H5NV-16P-A 32 Channel 4K Network Video Recorder with 16PoE Ports, No HDD included,
Key Features:
- Support 32 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- To acquire high-quality video at a considerably lower bit rate, use the standard H.265 high profile compression format.
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Manual, timer, motion, and sensor recording modes are all available.
- 16 CH screens are being played back at the same time.
- Time slice, time, event, tag, smart, and target database searches are all available.
- Detection and comparison of faces are supported.
- Pentaplex has features such as preview, recording, playback, backup, and remote access.
- DHCP, DDNS, PPPoE Network protocol, Internet Explorer browsing, and CMS are all supported. Remote control via IE or CMS: preview, playback, backup, PTZ, and configuration
- 16 port PoE network ports; IPC direct connection to NVR supported; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
- mobile device
- Multi-user online at the same time
- Management of authorizations, log viewing, and device status viewing
- True high-resolution display with 4K output
- Up to 255 presets and 8 voyages are supported for PTZ presets and auto cruises.
- NAT and QR Code scanning through mobile phone and PAD are supported.
- With iOS and Android OS, you may have a powerful smart phone and tablet surveillance system.
Downloads
User Manual
ENS-Security-ED9732H5NV-16P-A-User-Manual-A1
Quick Start Guide
ENS-Security-ED9732H5NV-16P-A-Quick-Start-Guide-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
4K Support:
|
4K Supported
|
Alarm Input:
|
16 Channel
|
Alarm Output:
|
4 Channel
|
Audio Input:
|
1x RCA
|
Audio Output:
|
1x RCA
|
Capacity for each disk:
|
up to 8TB
|
Channel Capacity:
|
32 Channels
|
Color:
|
Black
|
Compression:
|
H.265
|
Connection Type:
|
Wired
|

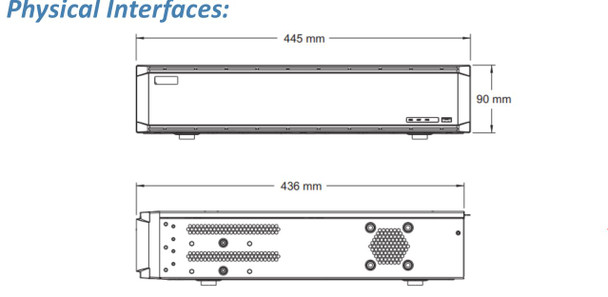

Dimensions:
|
445 × 436 × 90 mm (17.5 × 17.1 × 3.54 in)
|
Hard Drive Ports:
|
8 SATA Ports
|
LED Indicator:
|
Status LED
|
Max Power Consumption:
|
15 Watts
|
Max. Recording Resolution:
|
8MP (4K)
|
Max. Storage Capacity:
|
64 TB
|
Mobile Apps:
|
iOS
Android
|
Mounting:
|
Standalone
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
Number of PoE Ports:
|
16 PoE Ports
|
Operating Humidity:
|
10% to 90%
|
Operating System:
|
Embedded LINUX
|
Operating Temperature:
|
-10 °C to 50 °C (-4 °F to 122 °F)
|
Pre-Installed Storage:
|
No HDD included
|
Product Series:
|
ENS Titanium Series
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
Remote Users:
|
Up to 10
|
Video Output:
|
1x HDMI
1x VGA
|
e-SATA:
|
e-SATA
|
