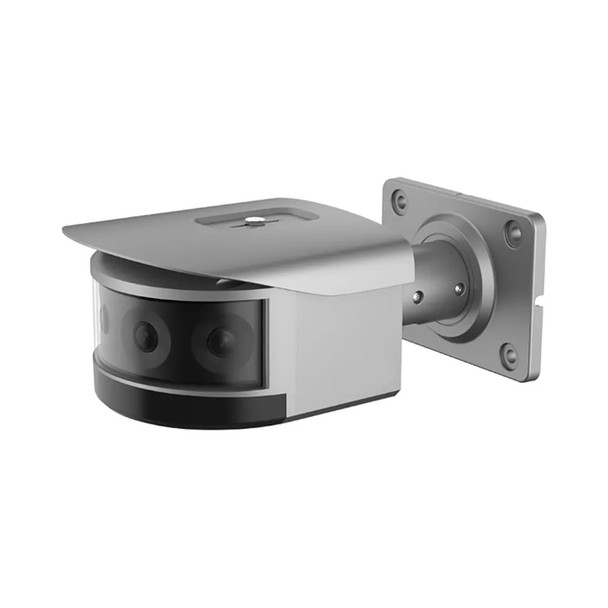

ENS HNC7I780-IRM1/28 4x 2MP Outdoor Night Vision Multi-sensor IP Security Camera, Panoramic
Description
ENS HNC7I780-IRM1/28 4x 2MP Outdoor Night Vision Multi-sensor IP Security Camera, Panoramic
The Diamond Series is a full portfolio of solutions composed of project- oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, this series provides precise, reliable and comprehensive AI solutions for verticals.
The splicing camera supports a 180° panoramic view and 4-channel hardware splicing to realize HD panoramic surveillance. The camera supports crowd situation analysis, vehicle situation analysis, and perimeter protection. It is widely applied in various scenes such as squares, airports, safe city, and traffic.
Key Features:
- Four 2MP 1/2.8″ CMOS image sensor, low illuminance, high image definition
- Outputs max. 8MP (4096 × 1800) @30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 30 m (98ft)
- ROI, SMART H.264 /H.265 , flexible coding, applicable to various bandwidth and storage environments
- DWDR, 3D NR, HLC, BLC, digital watermarking
- Intelligent functions: Crowd distribution map, Vehicle Density situation
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
- 12V DC/24V AC/PoE power supply; easy for installation
- Supports object tracking
- IP67, IK10 protection
- Panoramic Splicing
- With advanced splicing algorithm, Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor Security camera can be 180°, and the field of view of eight-sensor camera can be 360°.
- Crowd Density
- With deep learning algorithm, Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.
- Vehicle Density
- With deep learning algorithm, Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
Downloads
Additional Information
Alarm Input: |
2 Channel
|
Alarm Output: |
2 Channel
|
Aperture: |
F1.6
|
Audio Compression: |
G.711a
G.711Mu
G.726
AAC
G.723
|
Audio Input: |
1x Channel
|
Audio Output: |
1x Channel
|
Camera Style: |
Multi-sensor
|
Compatible Integration (API): |
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
P2P
Milestone
Genetec
|
Compression: |
H.265
H.264
H.264H
H.264B
MJPEG
|
Durability: |
Weatherproof
Vandal Proof
|
Environmental: |
Outdoor
|
Field of View (Horizontal): |
180
|
Languages: |
English
|
Lens Mount: |
M12
|
Lens Size: |
2.8mm
|
Lens Type: |
Fixed Lens
|
Max. Storage Capacity: |
256 GB
|
Minimum Illumination (Color): |
0.002 lux at F1.6
|
Mobile Apps: |
Android
iOS
|
Network Interface: |
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
Night Vision Range (ft): |
98
|
Noise Reduction: |
3D DNR
|
Power Supply: |
12 VDC
24 VAC
PoE+ (IEEE802.3at Class 4)
|
Product Series: |
Diamond
|
Protection Code: |
IP67
IK10
|
RAM: |
4GB
|
Resolution: |
8MP (4K)
|
S/N Ratio: |
>56 dB
|
SD Card Support: |
|
Sensor Size: |
1/2.8"
|
Sensor Type: |
CMOS
|
Storage Temperature: |
-40 °C to 60 °C (-40 °F to 140 °F)
|
Technology: |
Network (IP)
|
Web Browser: |
Internet Explorer
Chrome
Firefox
|
