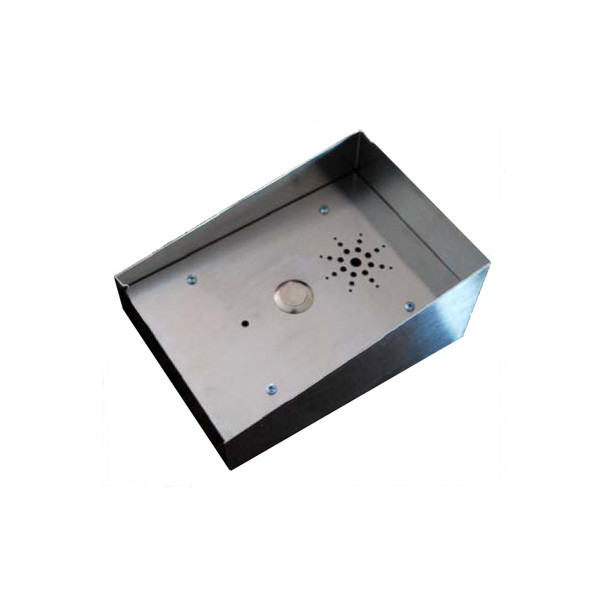

ETS STW1-SE-C5 Indoor/Outdoor Microphone and Speaker - Stainless Steel, Pre-amplified

ETS STW1-SE-C5 Indoor/Outdoor Microphone and Speaker

Stainless steel Speaker/microphone, suitable for both indoor and outdoor applications. Omni-directional pre-amplified microphone and 70V speaker for use in two way surveillance systems and ONLY with one of our –C5 Interface products to make fast and clean connections to DVRs, I/P cameras, etc. Single CAT5 cable connects the STW1-SE-C5 to a compatible interface, typically located near the DVR or I/P camera. An extra set of wires available in the CAT5 cable is broken out on quick connect terminals of the STW1-SE-C5 for connecting a remote call switch, door release relay or alarm contact. Includes Stainless steel cover, box and weather hood.

Key Features:

• Indoor/Outdoor heavy duty stainless steel housing with hood.
• Includes tamper proof screws
• Omni-directional 25’ pickup pattern.
• Low noise MOSFET pre-amplifier.
• 500Hz-13Khz Frequency response. Significantly reduces background noise.
• Jumper selectable hi-cut/lo-cut filters limit frequency response to up to 900 to 6Khz significantly reducing background noise.
• Jumper selectable volume range: "Line level" (0db) or "Microphone level" (-30db)
• Adjustable gain in both volume ranges.
• Peak limiter: .5 sec response time.
• 100 Ohm, unbalanced output
• Power: 12 to 24VDC @ 10mA.
• On-board voltage regulator and RFI filtering.
• 600 Ohm balanced audio output transformer.
• 2.75” speaker
• 2Watt, 70V line audio input only.
• 500Hz-5Khz speaker frequency response.
• RJ45 jack for single field cable run.
• Call switch output terminal block.
• -40C to 105C operating temperature.
• Dimensions: L 6.5” x W 4.6” H 3.1”
• Weight: 0.86lbs
