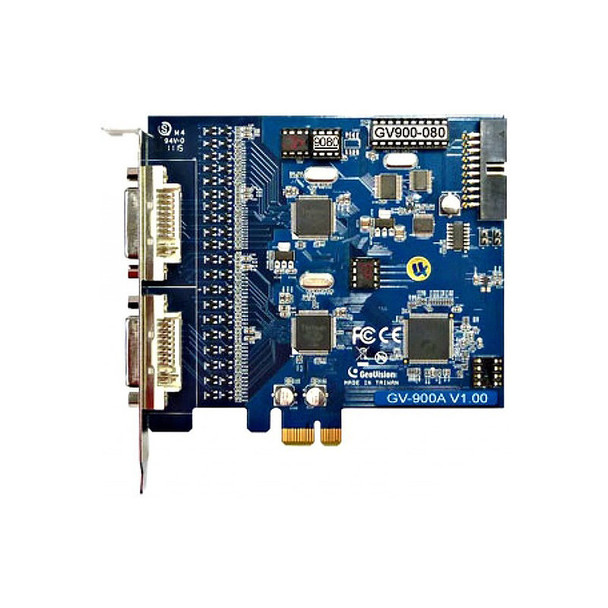

Geovision GV-900-8 CH Digital Video Recorder Card

GV-900-8
Geovision GV-900-8 CH Digital Video Recorder Card
Hover on image to enlarge
$475.00
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

Geovision GV-900-8 CH DVR Card
The all new GV-900-8 CH DVR Card from GeoVision provides up to 32 channels of video and 8 channels of audio which makes this the best in the market. This DVR card can record up to 240fps (30 fps per channel) in the NTSC format and 200fps in PAL format at full D1 resolution. The H.264 software compression is the compression technique used by the GV-900-8 CH. The highlight of the GeoVision cards are its versatility, up to 2 cards can be stacked up for a total of 32 channels.
The operating systems that support the GeoVision GV-900-8 are many. Some of them are Windows XP, Windows Vista, Windows 7 and Windows Server 2008 operating systems. The IP software installed in the GeoVision GV-900-8 allows users to combine CCTV cameras and IP cameras (Up to 32 channels). The interface this DVR card uses is PCI-E (x1). The input type of the GV-900-8 is DVI. GV-900-8 CH DVR Card includes a software CD and user manual for the convenience of its users.
Key Features of the Geovision GV-900-8 CH DVR Card
  • Video and Audio Channels: provides up to 32 channels of video and 8 channels of audio
  • Display Rate: the CIF resolution in NTSC format allows 240fps and in PAL format allows 200fps
  • Video Resolution: allows a resolution of 704x480, 704x480 De-interlace, 640x480, 640x480 De-interlace, 352x240, 320x240 in NTSC format and 704x576, 704x576 De-interlace, 640x480, 640x480 De-interlace, 352x288, 320x240 in PAL format
  • Dimensions: by the L XWXH format the dimension is 120 x 112 mm / 4.7 x 4.4 in

This product is also associated with:
Geovision DVR Cards

Features

Manufacturer:
Geovision
Product Type:
Recorders
Warranty:
3-year Manufacturer Warranty
Discontinued:
no

Video Recorder Features

Number of camera channels:
  • 8 camera channels
Video Output:
  • No video output
Technical Specs

GeoVision GV-900A-8 CH DVR Card Specifications
  • Interface: PCI-E (x1)
  • Input Type: DVI
  • Video Input: 8
  • Audio Input: 8 Channels
  • Recording Rate CIF: NTSC 8-port: 240 fps, PAL 8-port: 200 fps
  • Recording Rate D1: NTSC 8-port: 240 fps, PAL 8-port: 200 fps
  • Display Rate CIF: NTSC 8-port: 240 fps, PAL 8-port: 200 fps
  • Display Rate D1: NTSC 8-port: 240 fps, PAL 8-port: 200 fps
  • Video Resolution: NTSC 704x480, 704x480 De-interlace, 640x480, 640x480 De-interlace, 352x240, 320x240, PAL 704x576, 704x576 De-interlace, 640x480, 640x480 De-interlace, 352x288, 320x240
  • Video Compression Format: Geo MPEG4, Geo H264
  • Audio Format: 16 kHz / 16-bit, 32 kHz / 16-bit)
  • GV-NET/IO Card Support: Yes
  • Dimensions (W x H): 120 x 112 mm / 4.7 x 4.4 in
  • Installation Guide: GV-900A
  • OS Supported: 32-bit Windows XP / Vista / 7 / 8 / Server 2008, 64-bit Windows 7 / 8 / Server 2008 R2 / Server 2012
  • CPU: Pentium 4, 3.0 GHz with Dual Core
  • RAM: 2 x 1 GB Dual Channels
  • HDD: 160 GB
  • Graphic Card: AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
  • DirectX: 9.0c
Datasheets

Installation Manual (geovision-GV-900A-A1.pdf, 613 Kb) [Download]

Specsheet (geovision-Datasheet_900A-A1.pdf, 531 Kb) [Download]
