Geovision GV-AS1620 Single Door IP Controller

Brand: Geovision
Part Number: GV-AS1620
Write a Review
  • Geovision GV-AS1620 Single Door IP Controller
  • Geovision GV-AS1620 Single Door IP Controller
$180.23
Technical Support Technical Support

Description

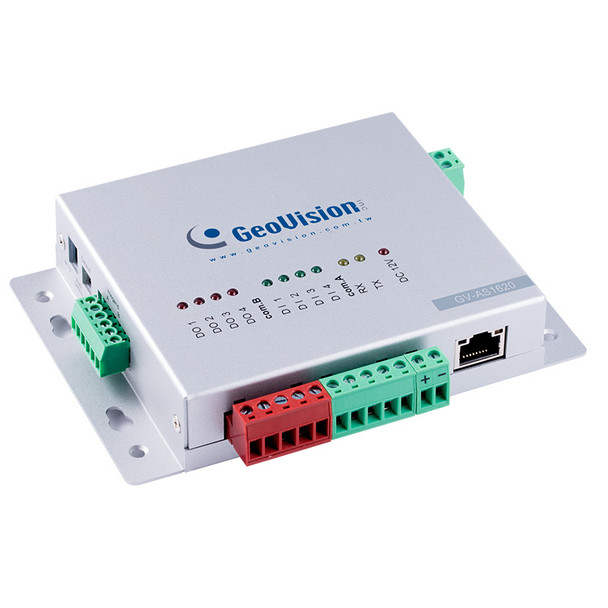

Geovision GV-AS1620 Single Door IP Controller

GV-AS1620 is a single door controller with three types of interfaces, Wiegand, RS-485 and TCP/IP, to accommodate various readers for entry and exit management. Through its I/O pins, it provides not only basic door operations but also alarm, tamper and fire senor applications, as well as allowing LEDs connected to indicate an access granted and denied.

Key Features:

  • One door IP controller (entry and exit)
  • 3 types of interfaces, Wiegand, RS-485 and TCP/IP, supporting 2 readers for each interface
  • 4 digital inputs for door contact, exit button, fire contact and tamper contact
  • 4 relay outputs for lock, alarm, 2 LED for an access granted and access denied
  • DC 12V, 3A / PoE+ (IEEE 802.3at)
  • Suitable for door, parking lot and elevator controls
  • Stores up to 100,000 cards
  • ONVIF (Profile C) conformant

Packing List:
  • GV-AS1620
  • Warranty Card
  • Download Guide
Optional Accessories:
  • GV-IB25 / 65 / 85 Infrared Button
  • GV-POE Switch
  • GV-WTR
  • GV-FWC
Note:
  • Specifications are subject to change without notice.

Compatible products

Additional Information

Alternative SKUs:
510-AS1620-000 84-AS16200-0100 VC-GVAS1620
NDAA Compliance:
NDAA Compliant
