Description

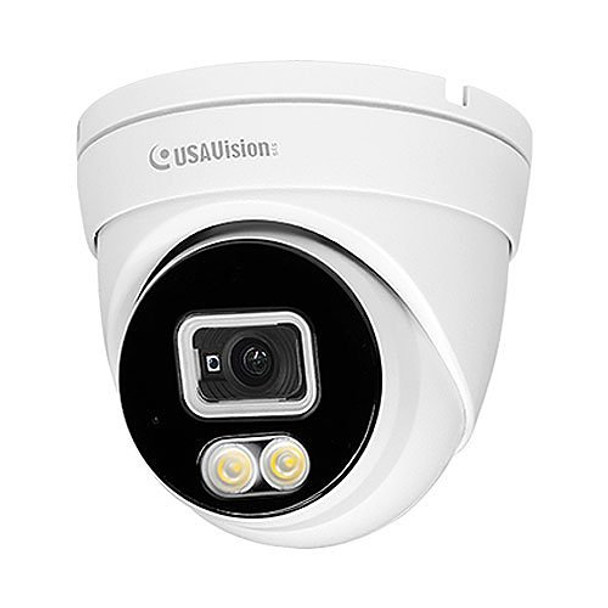

Geovision UA-CR550F2 5MP Full Color Night Vision Outdoor Turret HD CCTV Security Camera with Built-in Microphone and Warm LEDs, 2.8mm Fixed Lens
UA-CR550F2 is an outdoor, 5 MP HD Analog Camera with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA‐XVL810, UA‐XVL1610 and UA‐XVR810), it supports real-time alert, event playback and more.
Key Features:
- 1/2.7" progressive scan CMOS sensor
- Full Color smart warm LED
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Ingress protection (IP66)
- 4 in 1 (TVI / AHD / CVI / CVBS)
Downloads
Datasheet
Geovision-UA-CR550F2-Datasheet-A1
Quick Start Guide
Geovision-UA-CR550F2-Quick-Start-Guide-A1
Additional Information
|
Alternative SKUs:
|
700-CR550F2-000
|
|
Aperture:
|
F1.0
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
FCC
RoHS
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Day/Night:
|
Day (Color)
Night (B/W)
|
|
Dimensions:
|
100 x 90 mm (3.9 x 3.5 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
109.7
|
|
IR LED Quantity:
|
2
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
French
Spanish
Japanese
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
4 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.05 Lux
|
|
Mounting:
|
Wall Mount
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
2D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
Geovision USAVision Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
HD CCTV
|
|
Video Output:
|
1x BNC
|
|
Warranty:
|
1-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
