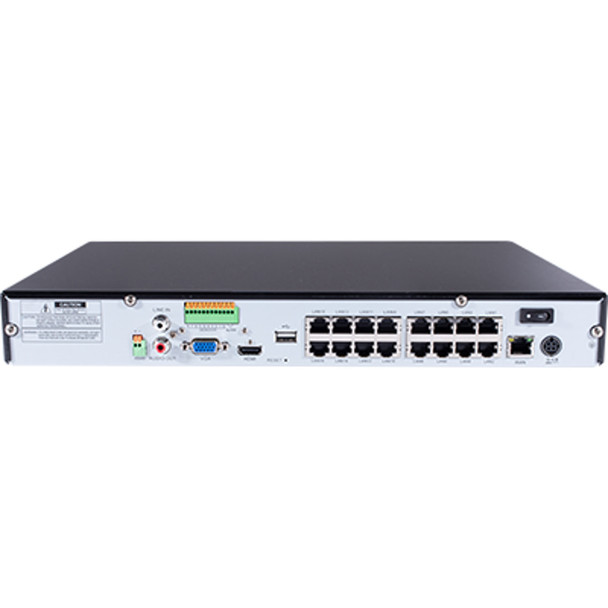

Geovision UA-SNVR1620-P 16 Channel 4K 2-Bay Network Video Recorder, No HDD included

Brand: Geovision
Part Number: UA-SNVR1620-P
Write a Review
  • Geovision UA-SNVR1620-P 16 Channel 4K 2-Bay Network Video Recorder, No HDD included
  • Geovision UA-SNVR1620-P 16 Channel 4K 2-Bay Network Video Recorder, No HDD included
  • Geovision UA-SNVR1620-P 16 Channel 4K 2-Bay Network Video Recorder, No HDD included
$394.13
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Number of PoE Ports : 16 PoE Ports

Description

Geovision UA-SNVR1620-P 16 Channel 4K 2-Bay Network Video Recorder, No HDD included

UA-SNVR1620-P is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drives. UA-SNVR1620-P supports up to 16 channels of IP cameras for network surveillance. It has 16-port built-in PoE (IEEE 802.3af), functioning to carry network and power to connected IP cameras. Featuring with up to 4K resolution video output, UA-SNVR1620-P eliminates the need of a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB mouse and a flash drive to back up videos.

With its Web Client on the web browser, users can access several functions, including Live View, Change Stream, Manual Alarm, Divide Screen, and more.

Key Features:

  • Support H.265 / H.264 video formats
  • Up to 16-ch IP camera input
  • 1-ch HDMI, 1-ch VGA; HDMI at up to 4K (3840 x 2160)
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 2 SATA HDDs up to 10 TB for each HDD
  • Two-way audio
  • P2P function for GV-Eye app
  • ONVIF cameras supported
Packing List:
  • UA-SNVR1620-P
  • 3.5"HDD Screw Kit x 2
  • 2.5"HDD Screw Kit x 2
  • USB Mouse
  • Power Adapter (DC 48V, 3.75A, 180W)
  • Power Cord
  • Download Guide

Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

4K Support:
4K Supported
Alarm Input:
8 Channel
Alarm Output:
1 Channel
Audio Capability:
Two-way Audio
Audio Compression:
G.711 G.726
Capacity for each disk:
up to 10TB
Channel Capacity:
16 Channels
Compression:
H.264 H.265
Hard Drive Ports:
2 SATA Ports
Languages:
English Turkish
Max. Recording Resolution:
8MP (4K)
Max. Storage Capacity:
20 TB
Mobile Apps:
Android iOS
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet 1x RJ-45 (100/1000 Base-T)
Number of PoE Ports:
16 PoE Ports
Operating System:
Embedded LINUX
Operating Temperature:
0 ºC to 40 ºC (32 ºF to 104 ºF)
Pre-Installed Storage:
No HDD included
Recorder Technology:
Network Video Recorder (NVR)
Serial Interface:
1x RS485
USB Interface:
2x USB 2.0
Video Output:
1x VGA
Web Browser:
Safari Firefox 52.0 or above Internet Explorer 10 or above Edge
