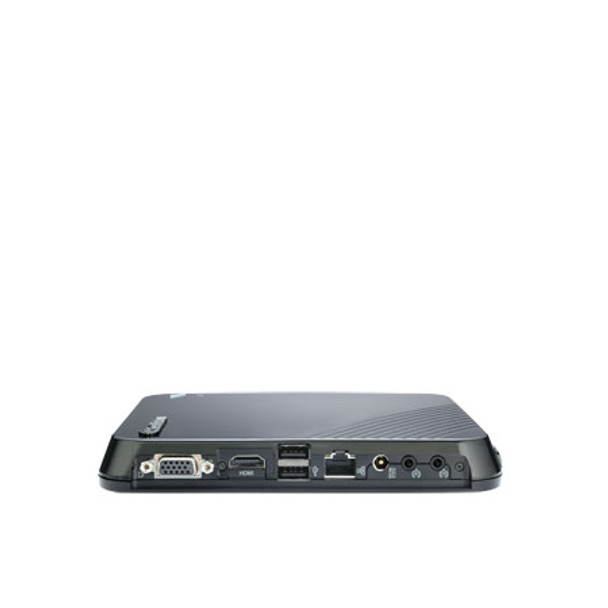

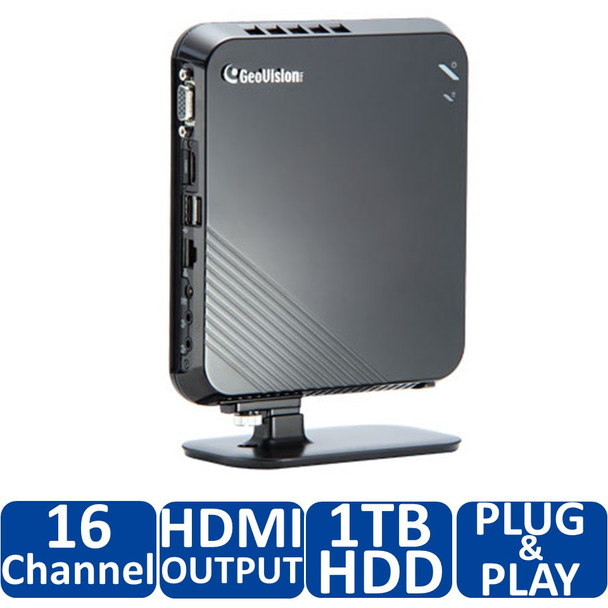

Geovision GV-NVR System Lite V2 Mini NVR - 16ch IP cameras, HDMI output, plug-and-play

Brand: Geovision
Part Number: GV-NVR-Lite-V2
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Geovision GV-NVR System Lite V2 Mini NVR
  • Geovision GV-NVR System Lite V2 Mini NVR
  • Geovision GV-NVR System Lite V2 Mini NVR
  • Geovision GV-NVR System Lite V2 Mini NVR
  • Geovision GV-NVR System Lite V2 Mini NVR
  • Geovision GV-NVR System Lite V2 Mini NVR - 16ch IP cameras, HDMI output, plug-and-play
Free shipping over $300 Free Shipping
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Compression : MPEG4, MJPEG, H.264,
  • Pre-Installed Storage : 1 TB
  • Video Output : 1x HDMI 1x VGA

Description

Geovision GV-NVR System Lite V2 Mini NVR

The GV-NVR System Lite V2 is an mini-NVR system which can record files directly to an internal hard-drive. It comes with 1 TB of storage. This NVR supports up to 16 GV IP cameras or 10 third-party IP cameras (license required). Network surveillance is a breeze to set up as the system is plug-and-play as GV IP cameras search for the network automatically. HDMI output allows you to view this on HDTV's. This system goes very well with small systems, intended for use in small businesses, retail stores, or homes. This unit is so slim that the VESA mounting solution lets you place it on the back of a PC monitor.

Key Features of the GV-NVR System Lite V2 Mini NVR

  • Compact and sleek
  • Up to 16 channels
  • Automatic connection to GV IP cameras
  • Support for 3rd party IP cameras (license required)
  • All-in-one solution (Live View, Playback, Recording, Backup, CMS)
  • GPU decoding and dewarping
  • H.264 / MJPEG / MPEG4
  • Dual video streams
  • VGA and HDMI outputs
  • 1 TB hard drive
  • Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter only)
  • Standing mount and VESA mount options
  • Direct recording to the internal hard drive
  • Low power consumption
  • Smart phones access
  • Fisheye camera dewarping function
  • Multiple (29) languages
Section A Dual-stream Resolution Max. Frame Rate Total Frame Rate
Stream 1 Stream 2
GV-IP Camera D1 704 x 480 /
704 x 576
352 x 240 /
352 x 288
30 fps / 25 fps 480 fps / 400 fps
1 MP 1280 x 720 448 x 252 15 fps 240 fps
1.3 MP 1280 x 1024 320 x 256 15 fps 240 fps
2 MP 1920 x 1080 448 x 252 10 fps 160 fps
3 MP 2048 x 1536 320 x 240 10 fps 160 fps
4 MP 2048 x 1944 640 x 480 10 fps 160 fps
5 MP 2560 x 1920 320 x 240 10 fps 160 fps
Section B Single Stream Resolution (H.264) Max. Frame Rate Total Frame Rate
GV-Fisheye 1.3 MP 1280 x 1024 (4:3) 7 fps 63 fps
2 MP 1440 x 1376 (4:3) 7 fps 21 fps
4 MP 2048 x 1944 (4:3) 6 fps 12 fps
5 MP 2560 x 1920 (4:3) 6 fps 6 fps
Section C Single Stream Resolution (H.264) Max. Frame Rate Total Frame Rate
Third-Party Camera VGA 640 x 480 30 fps 240 fps
1 MP 1280 x 720 15 fps 150 fps
1.3 MP 1280 X 1024 15 fps 150 fps
2 MP 1920 X 1080 10 fps 80 fps
3 MP 2048 x 1536 10 fps 20 fps
4 MP 2048 X 1944 10 fps 10 fps
5 MP 2560 X 1920 10 fps 10 fps
Section D Dual-stream Resolution Max. Frame Rate Total Frame Rate
Stream1 Stream 2
GV-Video Server V2 GV-VS11 / GV-VS14 704 x 480 352 x 240 30 fps 420 fps
GV-VS12 /
GV-VS04H
352 x 240 N/A 30 fps 420 fps
GV-Compact DVR V3 704 x 480
De-interlace
N/A 30 fps 300 fps

One GV-NVR System Lite V2

  • Automatic connection with GV-IP devices without configuration
  • Easy to install and use
Using GV-NVR System Lite V2, video files are recorded directly to the internal hard drive without setting up a separate computer. The user interface is intuitive and the plug and play function allows GV-IP devices to automatically connect to the unit without further configurations.
  • Packing List:
  • GV-NVR System Lite V2 x 1
  • AC Power Cord x 1
  • Power Adapter x 1
  • Standing Mount Kit (1 Base Stand and 1 Base Stand Screw included) x 1
  • VESA Monitor Mount Kit (1 Stand Screw and 4 Fix Screws included) x 1
  • GV-NVR System Lite V2 Quick Start Guide x 1

This product is also associated with:
Geovision

Additional Information

Channel Capacity:
16 Channels
Compression:
MPEG4 MJPEG H.264
Pre-Installed Storage:
1 TB
Recorder Technology:
Network Video Recorder (NVR)
Video Output:
1x HDMI 1x VGA
Warranty:
2-year Manufacturer Warranty
