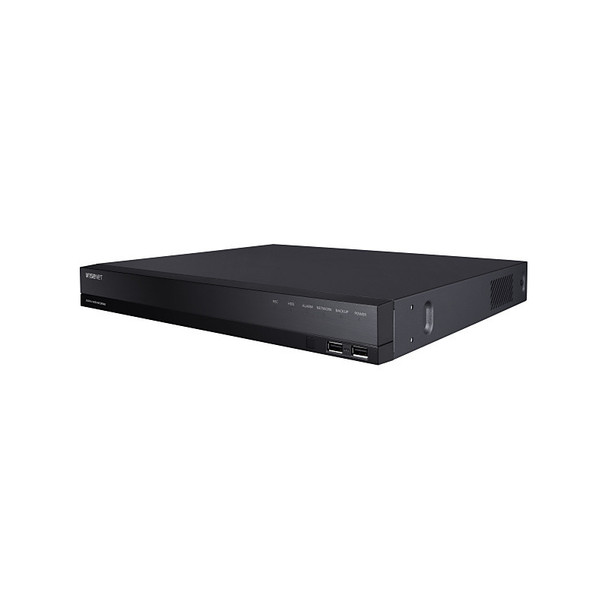

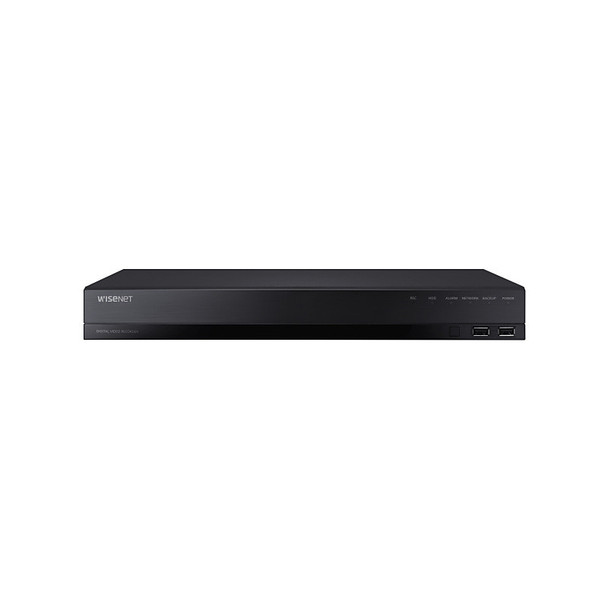

Hanwha Vision HRX-1634-10TB 16 Channel 8MP Pentabrid Digital Video Recorder with 10TB HDD Included

Hanwha Vision HRX-1634-10TB 16 Channel 8MP Pentabrid Digital Video Recorder with 10TB HDD Included

The Hanwha Vision HRX-1634-10TB is a versatile 16-channel pentabrid digital video recorder designed for hybrid surveillance systems utilizing a mix of AHD, HD-TVI, HD-CVI, CVBS, and IP camera inputs. Equipped with 10TB HDD Included and supporting up to 12TB through two internal SATA bays, the system enables high-resolution recording up to 8MP across both analog and network channels. It supports a total of 18 channels (16 analog + 2 IP or 18 IP), and records at up to 8fps for 8MP cameras and real-time 30fps for 2MP resolutions. Dual video output via HDMI and VGA, smart search functionality for network cameras, and compatibility with Wisenet AI cameras make the HRX-1634-10TB ideal for scalable and intelligent security installations. It also includes secure remote access, advanced event handling, and a 1U rackmount-ready design.

Key Features:

• 16CH Pentabrid DVR; supports AHD, TVI, CVI, CVBS, and IP inputs
• 10TB HDD Included; expandable up to 12TB with two internal SATA HDDs
• Supports Up to 18 Channels; 16 analog + 2 IP or 18 IP channels in hybrid mode
• Recording Resolution; up to 8MP (3840x2160) for analog and network video
• Recording Frame Rates; 8fps@8MP, 12fps@5MP, 15fps@4MP, 30fps@2MP
• Compression Support; H.265, H.264, MJPEG for optimized storage and bandwidth
• Dual Monitor Output; HDMI (up to 3840x2160) and VGA (up to 1920x1080)
• Simultaneous Playback; up to 18CH with max 32Mbps bandwidth
• Smart Search; available on recordings from network cameras
• AI Event Support; with Wisenet network cameras for enhanced analytics
• PTZ Control; supported via GUI, WebViewer, SSM, SmartViewer, and Wisenet Mobile
• Coaxial Control; for CVBS, AHD, TVI, and CVI camera formats
• Audio Channels; 4 line-in / 1 line-out with support for 2-way audio
• Alarm Integration; 16 inputs and 4 outputs for external device control
• Remote Monitoring; via WebViewer, Wisenet Mobile, SmartViewer, and SSM
• USB Ports; 2x front USB 2.0, 1x rear USB 3.0 for backup and peripherals
• Secure Networking; features HTTPS, 802.1x, IP filtering, signed firmware, and device certificate
• Compact 1U Rackmount Design; power-efficient with max 40W consumption
• Environmental Conditions; 0°C to +40°C operating range, 20–85% humidity, UL/CE/FCC certified
