Description

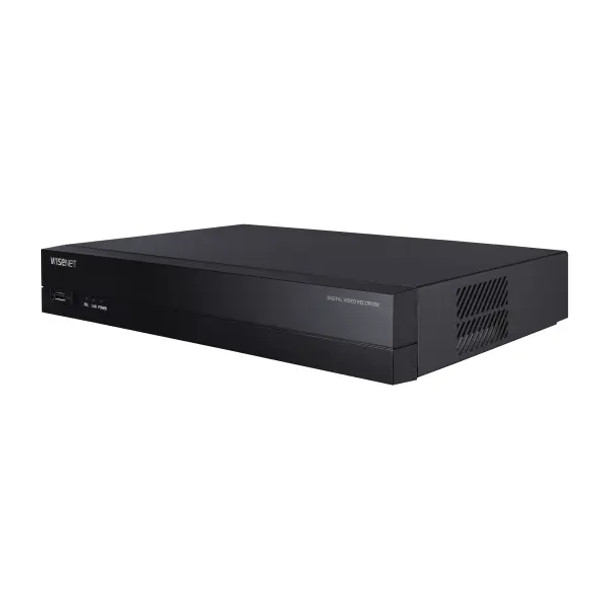

Hanwha Vision HRX-435 4-Channel Pentabrid DVR, 32Mbps, No Hard Drive Included, Black
Key Features:
- 5-in-1 4CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 6CH (Maximum 4 Channel analog and total maximum 6 CH network camera supported, depending on number of analog channels), up to 8MP
- H.265, H.264, MJPEG codec
- 8@8MP, 12fps@5MP recording
- Coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA Dual monitor output
- P2P service (QR code connect) for easy mobile app use
Downloads
Datasheet
Hanwha-Vision-HRX-435-Datasheet-A1
Quick Start Guide
Hanwha-Vision-HRX-435-Quick-Start-Guide-A1
User Manual
Hanwha-Vision-HRX-435-User-Manual-A1
Firmware
Hanwha-Vision-HRX-435-Firmware-A1
Additional Information
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Input:
|
4x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 6TB
|
|
Certifications:
|
UL Listed
CE
FCC
KC
EAC
cULus
|
|
Channel Capacity:
|
4 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
370 x 44 x 320 mm (14.56 x 1.73 x 12.59 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Max Power Consumption:
|
40 Watts
|
|
Max. FPS and Resolution:
|
8fps at 8MP
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
12 TB
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Power Supply:
|
12 VDC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Remote Users:
|
Up to 10
|
|
Serial Interface:
|
1x RS485
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
