Description

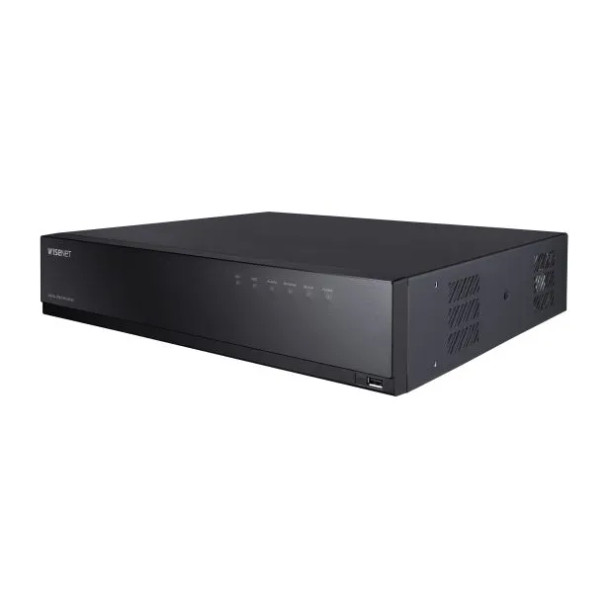

Hanwha Vision HRX-835A-16TB 8 Channel 8MP Pentabrid DVR with 16TB HDD Included
The Hanwha Vision HRX-835A-16TB is an advanced 8-channel Pentabrid DVR designed for flexible surveillance applications, supporting AHD, HDTVI, HDCVI, CVBS, and IP camera inputs. It can handle up to 10 total channels, with a maximum resolution of 8MP for crystal-clear video recording. With 16TB HDD Included, it provides extensive storage capacity for long-term video retention. The system features H.265, H.264, and MJPEG video compression, optimizing storage and bandwidth efficiency. Equipped with HDMI and VGA dual monitor outputs, it allows for high-resolution local display at up to 4K. The HRX-835A-16TB includes intelligent event triggers such as motion detection, video loss, and camera tampering alerts. Remote access is available via Wisenet Mobile, WebViewer, and Hanwha’s SSM software, making it a robust and versatile surveillance solution.
Key Features:
- 8 Channels; supports 8 analog inputs and up to 2 additional IP channels for flexible expansion
- 8MP Recording Resolution; delivers ultra-high-definition video for detailed monitoring
- 16TB HDD Included; provides ample storage for long-term video retention
- H.265, H.264, and MJPEG Compression; optimizes storage usage while maintaining high-quality video
- Dual HDMI and VGA Outputs; supports up to 4K local display for high-resolution playback
- Multiple Camera Compatibility; supports AHD, HDTVI, HDCVI, CVBS, and IP cameras
- 80Mbps Recording Bandwidth; ensures smooth and reliable video performance
- Smart Event Triggers; includes motion detection, video loss, tampering detection, and alarm inputs
- Remote Monitoring; accessible via Wisenet Mobile, WebViewer, and SSM software
- Coaxial Control Support; allows PTZ control over compatible cameras
- USB and Network Backup; enables easy and secure video export
- Easy Setup and Configuration; includes setup wizard and QR code for P2P connectivity
- 5-Year Limited Warranty; ensures long-term reliability and support
Downloads
Additional Information
|
Channel Capacity:
|
8 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
440 × 88 × 384.8 mm (17.32 × 3.46 × 15.15 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Max. Storage Capacity:
|
24 TB
|
|
Pre-Installed Storage:
|
16 TB
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
