Description

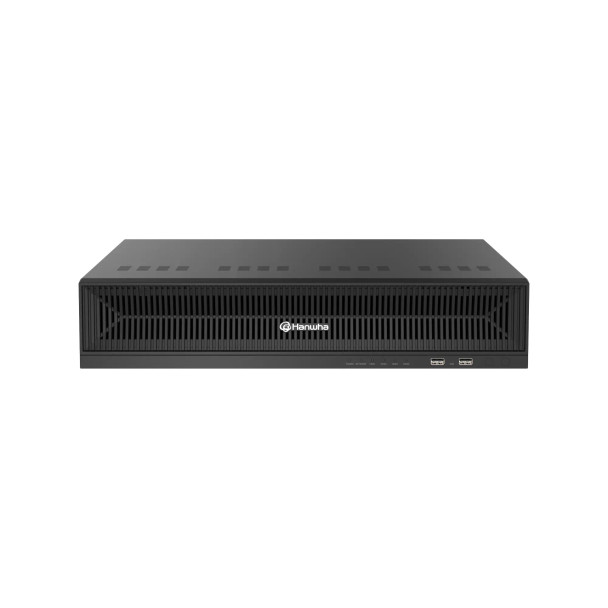

Hanwha Vision WRN-1632-12TB 32 Channel Network Video Recorder with 12TB HDD Included, Linux OS
The Hanwha Vision WRN-1632-12TB is a reliable 32-channel network video recorder designed to support Wave VMS for seamless integration across client, mobile, and cloud platforms. Featuring Linux-based Ubuntu 22.04 LTS and 8GB DDR4 RAM, this model includes 12TB HDD Included and supports expansion up to 40TB using four internal SATA bays. With a recording throughput of up to 250Mbps, it is ideal for edge deployments requiring stable, high-resolution video capture. The system offers HDMI and DisplayPort outputs for local configuration and monitoring, while its dual Gigabit Ethernet ports ensure flexible network setup. AI metadata support, USB connectivity, and a rack-mountable form factor make the WRN-1632-12TB a practical and scalable solution for professional surveillance needs.
Key Features:
- 32 Channels; supports up to 32 IP cameras for medium-sized surveillance installations
- 12TB HDD Included; expandable up to 40TB with four internal SATA drive bays
- 250Mbps Recording Throughput; delivers efficient, high-quality video capture
- Wave VMS Support; fully compatible with Wave client, mobile, and cloud platforms
- AI Metadata Support; enables intelligent video analysis with AI-enabled cameras
- Embedded Linux OS; preloaded with Ubuntu 22.04 LTS for reliable, secure performance
- Quad-Core CPU and 8GB DDR4 RAM; provides responsive and stable system operation
- HDMI and DisplayPort Outputs; allow dual-monitor setup for local monitoring and configuration
- USB Interface; includes two front USB 2.0 and two rear USB 3.0 ports for peripheral connectivity
- Dual Ethernet Ports; offers WAN/LAN separation or redundancy with two RJ-45 (1Gbps) ports
- 2-Way Audio Output; supports local audio playback and monitoring
- Operating Environment; functions in temperatures from 0°C to +40°C and 20–85% humidity
- Power Input and Consumption; supports 100–240V AC input with 80W power usage
- Compact Rackmount Design; includes rack brackets for convenient 1U installation
- Status Indicators; front panel LEDs for power, network, and HDD activity monitoring
- Secure Architecture; supports HTTPS, system partitioning, and signed firmware integrity validation
Downloads
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
32 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.86 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Max. Storage Capacity:
|
40 TB
|
|
Pre-Installed Storage:
|
12 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
