Description

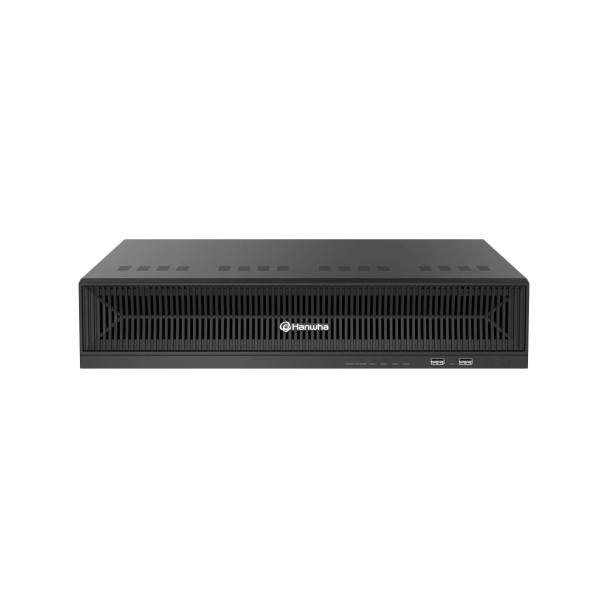

Hanwha Vision WRN-1632-24TB 32 Channel Network Video Recorder with 24TB HDD Included, Linux OS
The Hanwha Vision WRN-1632-24TB is a feature-rich 32-channel network video recorder designed for professional surveillance systems leveraging the Wave VMS platform. Preloaded with Ubuntu 22.04 LTS, this system includes 24TB HDD Included and supports storage expansion up to 40TB across four internal SATA drive bays. With up to 250Mbps of recording throughput, the WRN-1632-24TB delivers smooth, high-resolution video recording and playback. It supports AI metadata for advanced analytics and offers dual HDMI and DisplayPort outputs for flexible local monitoring. With its rackmount-ready form factor, dual Ethernet ports, and full integration with Wave client, mobile, and cloud services, this unit provides a scalable and secure solution for medium to large-scale surveillance deployments.
Key Features:
- 32 Channels; supports up to 32 IP camera connections for versatile surveillance coverage
- 24TB HDD Included; expandable up to 40TB using four internal SATA bays
- 250Mbps Recording Throughput; handles high-resolution video efficiently across multiple channels
- Wave VMS Support; compatible with Wave client, mobile app, and cloud sync features
- AI Metadata Support; enables intelligent video analytics with supported AI cameras
- Embedded Linux OS; powered by Ubuntu 22.04 LTS for reliable, secure system performance
- Quad-Core CPU and 8GB DDR4 RAM; ensures fast, stable operation in demanding environments
- Dual Video Outputs; includes HDMI and DisplayPort for simultaneous local monitoring
- USB Interface; equipped with two front USB 2.0 and two rear USB 3.0 ports
- Dual Ethernet Ports; supports LAN/WAN separation or failover using two 1Gbps RJ-45 ports
- Audio Output Support; enables local audio playback for event monitoring
- Operating Environment; supports temperatures from 0°C to +40°C and 20–85% humidity
- Compact 1U Rackmount Design; includes rack brackets for easy server room installation
- Front Panel Indicators; LEDs for system power, network status, and HDD activity
- Secure System Architecture; features HTTPS support, partitioned OS/data storage, and signed firmware verification
Downloads
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
32 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.86 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Max. Storage Capacity:
|
40 TB
|
|
Pre-Installed Storage:
|
24 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
