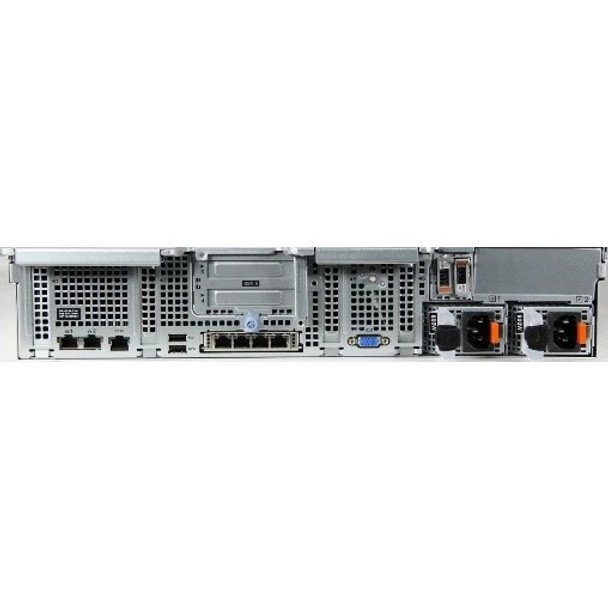

Hanwha Vision WRR-P-S204S-144TB Video Server & NVR with 144TB HDD Included, Windows Server OS

Part Number: WRR-P-S204S-144TB
Write a Review
  • Hanwha Vision WRR-P-S204S-144TB Video Server & NVR with 144TB HDD Included, Windows Server OS
  • Hanwha Vision WRR-P-S204S-144TB Video Server & NVR with 144TB HDD Included, Windows Server OS
  • Hanwha Vision WRR-P-S204S-144TB Video Server & NVR with 144TB HDD Included, Windows Server OS
$35,936.00
$26,316.77
— You save $9,619.23
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Pre-Installed Storage : 144 TB
  • Hard Drive Ports : 12 SATA Ports
  • Max. Storage Capacity : 240 TB Storage Capacity
  • Environmental : Indoor

Description

Hanwha Vision WRR-P-S204S-144TB Video Server & NVR with 144TB HDD Included, Windows Server OS

The Hanwha Vision WRR-P-S204S-144TB Video Server & NVR is a powerful 2U rackmount system built to meet the storage and performance demands of enterprise-class video surveillance environments. With 144TB of raw video-optimized storage using 24/7 duty cycle SAS drives, it delivers reliable, long-term retention for high-resolution, multi-camera systems. Preloaded with Wisenet WAVE VMS and including four Wave Professional licenses, this server allows for quick, seamless integration with Wisenet and ONVIF-compliant IP cameras. It operates on Windows Server 2022, ensuring secure and efficient compatibility with enterprise IT infrastructure. The system features an Intel Xeon processor, 16GB DDR4 RAM, and dual 480GB SSDs in RAID 1 for OS and application stability. Capable of handling up to 470Mbps of recording throughput, the WRR-P-S204S-144TB supports RAID 0, 1, 5, 6, and 10 and offers 12 front-accessible hot-swappable bays, IPMI management, and full rackmount installation support for streamlined deployment.

Key Features:

  • Preloaded with Wisenet WAVE VMS; ensures quick setup and configuration.
  • Includes four Wisenet WAVE Professional licenses; supports out-of-the-box camera integration.
  • 144TB internal HDD storage with RAID support; delivers high-capacity and secure video retention.
  • Dual 480GB SSDs in RAID 1; dedicated OS drives for faster and more secure system performance.
  • Intel Xeon processor with 16GB DDR4 RAM; enables smooth processing for demanding video tasks.
  • Supports up to 470Mbps recording throughput; ideal for high-density camera deployments.
  • Four RJ45 GbE network ports with optional 10GbE SFP; ensures flexible and high-speed network connectivity.
  • 2U rackmount chassis with 12 hot-swappable bays; simplifies storage expansion and maintenance.
  • Runs on Windows Server 2022; optimized for integration with enterprise IT ecosystems.
  • Supports Wisenet and ONVIF conformant IP cameras; ensures broad system compatibility.
  • Includes sliding rail kit with cable management and USB keyboard/mouse; facilitates easy installation and servicing.
  • 5-year limited warranty with next-business-day on-site service and keep-your-hard-drive policy; protects uptime and data integrity.
Replacement of: WRR-P-S202S1-144TB

Additional Information

Compliance:
NDAA Compliant
Dimensions:
482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41")
Environmental:
Indoor
Hard Drive Ports:
12 SATA Ports
Max. Storage Capacity:
240 TB
Operating Humidity:
5% to 95% RH
Operating Temperature:
10 °C to 35 °C (50 °F to 95 °F)
Pre-Installed Storage:
144 TB
Recorder Technology:
Video Server
