Description

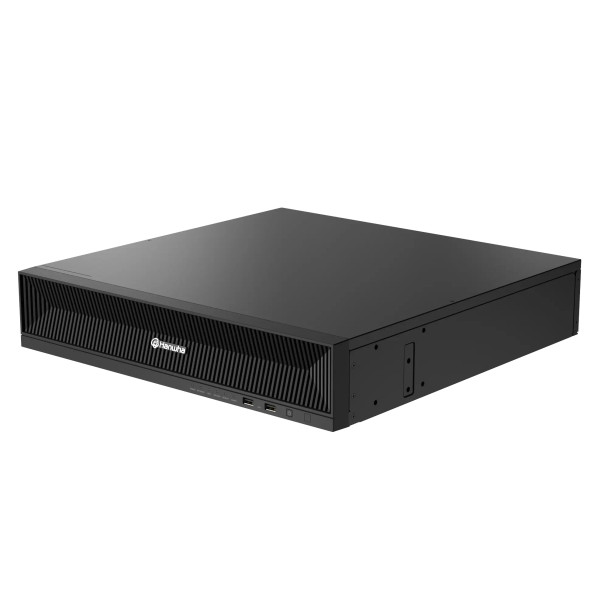

Hanwha Vision XRN-3220B2-80TB 32 Channel 32MP Network Video Recorder with 80TB HDD Included
The Hanwha Vision XRN-3220B2-80TB is a fully equipped 32-channel network video recorder built for enterprise-grade surveillance systems that demand ultra-high-resolution video, intelligent analytics, and maximum internal storage. Supporting up to 32MP resolution per channel, this system comes with 80TB HDD Included—the maximum supported across its 8 hot-swappable SATA bays. Powered by a 12th generation Intel processor and running on embedded Linux OS, it delivers up to 520Mbps of recording and transmission bandwidth. It features dual HDMI outputs for 4K and Full HD simultaneous local display, dynamic layouts, virtual channel views, and advanced multi-mode playback. When paired with Wisenet AI cameras, it enables AI-based object attribute search for efficient forensic review. With N+1 failover support, TPM-based security, and NDAA compliance, the XRN-3220B2-80TB is an ideal solution for large-scale, high-security deployments.
Key Features:
- 32 Channels; supports up to 32 IP camera inputs with resolutions up to 32MP
- 80TB HDD Included; maximum internal capacity using 8 hot-swappable SATA drive bays
- Up to 520Mbps Recording Bandwidth; supports smooth multi-channel, high-resolution video recording
- Dual HDMI Outputs; enables 4K and Full HD local display with flexible layout configuration
- AI Object Attribute Search; enhances investigation efficiency when used with Wisenet AI cameras
- H.265, H.264, MJPEG Compression; optimizes storage usage and transmission bandwidth
- Smart Search and Playback; includes event-based filtering, bookmarks, and multi-display playback
- Fisheye Dewarping; improves local viewing of 360° panoramic video content
- Remote Access; available via Wisenet Viewer, WebViewer, and Wisenet Mobile platforms
- Multi-User Access; supports 1 local and up to 3 remote users with permission-based access
- Failover Support (N+1); ensures uninterrupted recording during system hardware failure
- 2-Way Audio Support; supports 32-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; delivers stable and efficient 24/7 operation with minimal maintenance
- Secure Networking; includes HTTPS, 802.1x, IP filtering, TPM, signed firmware, and device certificate
- Hot-Swappable Drive Bays; allow for storage upgrades or maintenance without system downtime
Downloads
Popular Search
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
32 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
Max. Storage Capacity:
|
80 TB
|
|
Pre-Installed Storage:
|
80 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
