Description

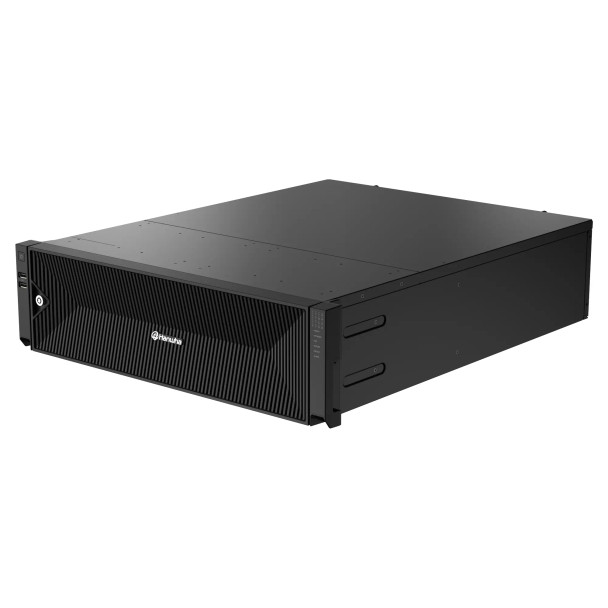

Hanwha Vision XRN-3220B4-16TB 32 Channel 32MP Network Video Recorder with 16TB HDD Included
The Hanwha Vision XRN-3220B4-16TB is a robust 32-channel network video recorder developed for high-resolution surveillance environments that require flexible scalability and enterprise-grade reliability. Supporting camera resolutions up to 32MP and equipped with 16TB HDD Included, this system is expandable up to 160TB through 16 hot-swappable SATA bays. Powered by a 12th generation Intel processor and running on embedded Linux, it delivers up to 520Mbps recording and transmission bandwidth. The unit features dual HDMI outputs for 4K and Full HD local display, dynamic layout configuration, virtual channel view, and AI object attribute search when used with Hanwha AI cameras. Designed with system resilience in mind, the XRN-3220B4-16TB includes RAID 5/6 support, failover (N+1) recording, and multi-user remote access through Wisenet Viewer, WebViewer, and Wisenet Mobile.
Key Features:
- 32 Channels; supports up to 32 IP camera inputs with resolutions up to 32MP
- 16TB HDD Included; scalable up to 160TB with 16 hot-swappable SATA drive bays
- Up to 520Mbps Recording Bandwidth; enables smooth, high-resolution multi-channel recording
- Dual HDMI Outputs; supports 4K (HDMI 1) and Full HD (HDMI 2) local display with flexible layout options
- AI Object Attribute Search; enables intelligent forensic search with Hanwha AI cameras
- H.265, H.264, MJPEG Compression; ensures efficient use of bandwidth and storage
- RAID 5/6 Support; provides data redundancy via dual 8-HDD array configuration
- Smart Search and Playback; includes bookmark features and advanced multi-mode search
- Fisheye Dewarping; improves viewing experience for panoramic 360° camera footage
- Remote Access; via Wisenet Viewer, WebViewer, Wisenet Mobile, and SSM software
- Multi-User Access; supports up to 4 users simultaneously (1 local, 3 remote)
- Failover Support (N+1); maintains recording in the event of system failure
- 2-Way Audio Support; supports 32-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; delivers stable, maintenance-free 24/7 operation
- Secure Networking; includes HTTPS, IP filtering, 802.1x, device certificate, and signed firmware
- Hot-Swappable Drive Bays; allow for storage upgrades or replacements without system downtime
Downloads
Additional Information
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
32 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
440.0 × 132.0 × 571.1 mm (17.32 × 5.20 × 22.48 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
16 SATA Ports
|
|
Max. Storage Capacity:
|
160 TB
|
|
Pre-Installed Storage:
|
16 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
