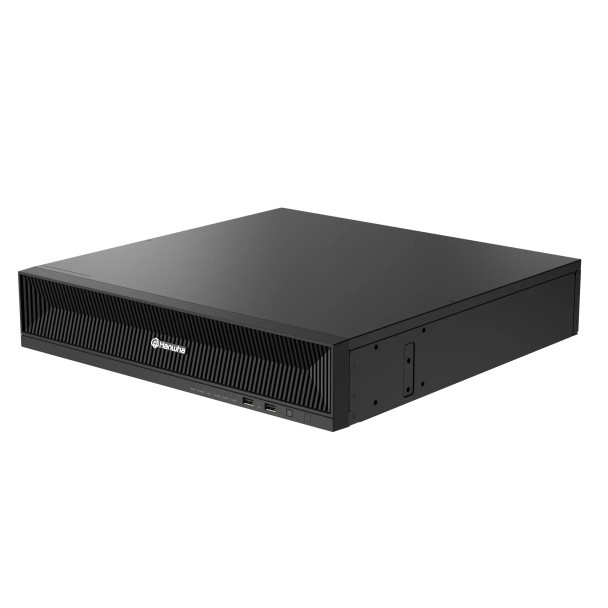

Hanwha Vision XRN-6420B2-20TB 64 Channel 32MP Network Video Recorder with 20TB HDD Included

Hanwha Vision XRN-6420B2-20TB 64 Channel 32MP Network Video Recorder with 20TB HDD Included

The Hanwha Vision XRN-6420B2-20TB is a 64-channel network video recorder engineered for professional surveillance environments that demand ultra-high-resolution video, intelligent search functionality, and secure, expandable storage. Supporting up to 32MP resolution per channel, this unit includes 20TB HDD Included and is expandable up to 80TB via 8 hot-swappable SATA drive bays. Powered by a 12th generation Intel processor and embedded Linux OS, it delivers up to 520Mbps recording and transmission bandwidth. Dual HDMI outputs support simultaneous 4K and Full HD display, with dynamic layout and virtual channel view options enhancing local monitoring. Integrated with Wisenet AI cameras, it enables AI object attribute search for precise and efficient forensic investigation. With RAID 5/6, N+1 failover, TPM-based security, and NDAA compliance, the XRN-6420B2-20TB delivers scalable, intelligent video management for enterprise-grade deployments.

Key Features:

• 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
• 20TB HDD Included; expandable up to 80TB with 8 hot-swappable SATA drive bays
• Up to 520Mbps Recording Bandwidth; ensures smooth multi-stream, high-resolution recording
• Dual HDMI Outputs; enables simultaneous 4K and Full HD display with flexible dynamic layout
• AI Object Attribute Search; enhances forensic accuracy with Wisenet AI camera integration
• H.265, H.264, MJPEG Compression; optimizes storage and bandwidth performance
• RAID 5/6 Support; provides advanced data redundancy with dual 8-HDD array capability
• Smart Search and Playback; features bookmarking, event filtering, and multi-mode playback
• Fisheye Dewarping; improves clarity of 360° panoramic video during local playback
• Remote Access; via Wisenet Viewer, WebViewer, and Wisenet Mobile platforms
• Multi-User Access; supports 1 local and up to 3 remote users simultaneously
• Failover Support (N+1); ensures uninterrupted operation in the event of hardware failure
• 2-Way Audio Support; manages 64-channel network audio with G.711, G.726, and AAC codecs
• Embedded Linux OS; ensures stable 24/7 performance with low maintenance
• Secure Networking; includes HTTPS, 802.1x, IP filtering, TPM, signed firmware, and device certificate
• Hot-Swappable Drive Bays; allow storage maintenance and upgrades without system interruption
