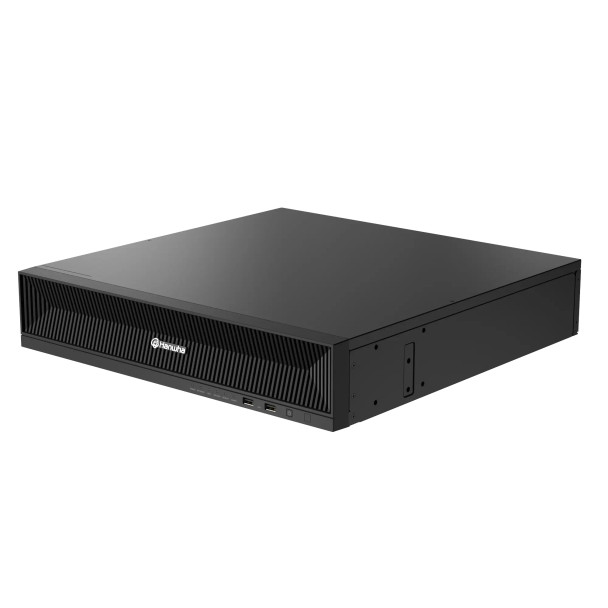

Hanwha Vision XRN-6420B2-48TB 64 Channel 32MP Network Video Recorder with 48TB HDD Included

Part Number: XRN-6420B2-48TB
Write a Review
$9,934.00
$7,274.90
— You save $2,659.10
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Pre-Installed Storage : 48 TB
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 80 TB Storage Capacity
  • Environmental : Indoor

Description

Hanwha Vision XRN-6420B2-48TB 64 Channel 32MP Network Video Recorder with 48TB HDD Included

The Hanwha Vision XRN-6420B2-48TB is a high-performance 64-channel network video recorder built to support large-scale surveillance environments requiring ultra-high-resolution recording, AI-powered search functionality, and scalable, secure storage. Supporting up to 32MP resolution per channel, the system includes 48TB HDD Included and is expandable up to 80TB via 8 hot-swappable SATA drive bays. It is powered by a 12th generation Intel processor and operates on embedded Linux OS, offering up to 520Mbps of recording and transmission bandwidth. With dual HDMI outputs, users can view simultaneous 4K and Full HD content locally, supported by dynamic layout and virtual channel view options. Integrated with Wisenet AI cameras, it supports AI object attribute search for precise and efficient forensic investigation. With RAID 5/6, N+1 failover, TPM-based hardware security, and NDAA compliance, the XRN-6420B2-48TB is ideal for enterprise-grade, mission-critical deployments.

Key Features:

  • 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
  • 48TB HDD Included; expandable up to 80TB with 8 hot-swappable SATA drive bays
  • Up to 520Mbps Recording Bandwidth; enables smooth, multi-stream high-resolution recording
  • Dual HDMI Outputs; allows simultaneous 4K and Full HD local display with dynamic layout options
  • AI Object Attribute Search; enhances forensic accuracy with Wisenet AI camera integration
  • H.265, H.264, MJPEG Compression; improves bandwidth and storage efficiency
  • RAID 5/6 Support; ensures data redundancy and protection via dual 8-HDD array configurations
  • Smart Search and Playback; includes event filtering, bookmarks, and flexible playback options
  • Fisheye Dewarping; enhances clarity for 360° panoramic camera footage on local displays
  • Remote Access; available via Wisenet Viewer, WebViewer, and Wisenet Mobile
  • Multi-User Access; supports 1 local and up to 3 simultaneous remote users
  • Failover Support (N+1); provides continuous recording in case of system failure
  • 2-Way Audio Support; supports 64-channel network audio with G.711, G.726, and AAC codecs
  • Embedded Linux OS; ensures 24/7 stability and low-maintenance operation
  • Secure Networking; includes HTTPS, IP filtering, 802.1x, TPM, signed firmware, and device certificate
  • Hot-Swappable Drive Bays; allow storage upgrades and maintenance without system interruption

Additional Information

Capacity for each disk:
up to 10TB
Channel Capacity:
64 Channels
Compliance:
NDAA Compliant
Compression:
H.264 H.265 MJPEG
Dimensions:
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
Environmental:
Indoor
Hard Drive Ports:
8 SATA Ports
Max. Storage Capacity:
80 TB
Operating Humidity:
20% to 85% RH
Operating Temperature:
0 °C to 40 °C (32 °F to 104 °F)
Pre-Installed Storage:
48 TB
Recorder Technology:
Network Video Recorder (NVR)
