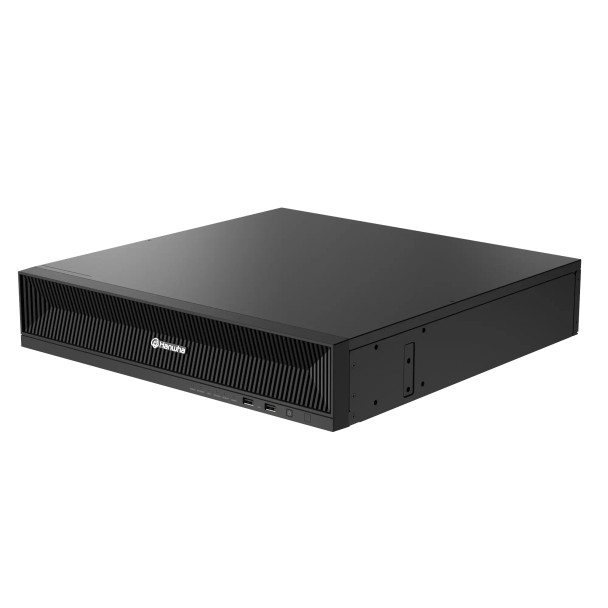

Hanwha Vision XRN-6420B2-80TB 64 Channel 32MP Network Video Recorder with 80TB HDD Included

Part Number: XRN-6420B2-80TB
Write a Review
$13,774.00
$10,087.02
— You save $3,686.98
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG,
  • Pre-Installed Storage : 80 TB
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 80 TB Storage Capacity
  • Environmental : Indoor

Description

Hanwha Vision XRN-6420B2-80TB 64 Channel 32MP Network Video Recorder with 80TB HDD Included

The Hanwha Vision XRN-6420B2-80TB is a top-tier 64-channel network video recorder built for enterprise-grade surveillance deployments requiring ultra-high-resolution video recording, AI-powered analytics, and maximum onboard storage. Supporting up to 32MP camera resolution, this system includes 80TB HDD Included—the full capacity supported via 8 hot-swappable SATA drive bays. Equipped with a 12th generation Intel processor and operating on embedded Linux OS, it delivers up to 520Mbps of recording and transmission bandwidth. Dual HDMI outputs allow for simultaneous 4K and Full HD local display with dynamic layout and virtual channel view support. When integrated with Wisenet AI cameras, the system enables AI object attribute search for fast and precise forensic investigations. With RAID 5/6 support, failover (N+1), TPM hardware security, and NDAA compliance, the XRN-6420B2-80TB is engineered for reliable, scalable, and intelligent video surveillance management.

Key Features:

  • 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
  • 80TB HDD Included; maximum supported capacity with 8 hot-swappable SATA drive bays
  • Up to 520Mbps Recording Bandwidth; enables high-resolution, multi-channel video recording
  • Dual HDMI Outputs; supports simultaneous 4K and Full HD display with dynamic layout flexibility
  • AI Object Attribute Search; enhances forensic search when integrated with Wisenet AI cameras
  • H.265, H.264, MJPEG Compression; improves bandwidth efficiency and storage utilization
  • RAID 5/6 Support; offers robust data protection using dual 8-HDD array configurations
  • Smart Search and Playback; supports event filtering, bookmarking, and flexible playback options
  • Fisheye Dewarping; improves clarity for 360° panoramic video during local monitoring
  • Remote Access; available via Wisenet Viewer, WebViewer, and Wisenet Mobile
  • Multi-User Access; supports 1 local and up to 3 simultaneous remote users
  • Failover Support (N+1); ensures uninterrupted recording in case of system failure
  • 2-Way Audio Support; handles 64-channel network audio with G.711, G.726, and AAC codecs
  • Embedded Linux OS; provides stable 24/7 operation with minimal maintenance
  • Secure Networking; includes HTTPS, 802.1x, IP filtering, TPM, signed firmware, and device certificate
  • Hot-Swappable Drive Bays; allow for tool-free upgrades and drive replacements without downtime

Additional Information

Capacity for each disk:
up to 10TB
Channel Capacity:
64 Channels
Compliance:
NDAA Compliant
Compression:
H.264 H.265 MJPEG
Dimensions:
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
Environmental:
Indoor
Hard Drive Ports:
8 SATA Ports
Max. Storage Capacity:
80 TB
Operating Humidity:
20% to 85% RH
Operating Temperature:
0 °C to 40 °C (32 °F to 104 °F)
Pre-Installed Storage:
80 TB
Recorder Technology:
Network Video Recorder (NVR)
