Description

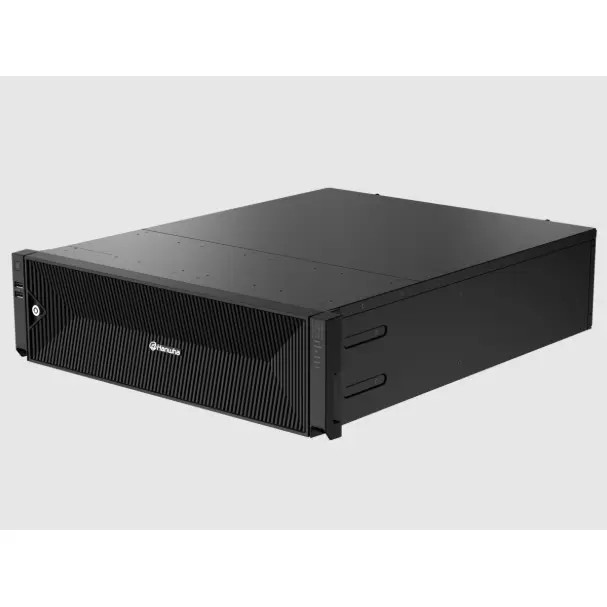

Hanwha Vision XRN-6420DB4-140TB 64 Channel 32MP Network Video Recorder with 140TB HDD Included
The Hanwha Vision XRN-6420DB4-140TB is a robust 64-channel network video recorder developed for advanced surveillance deployments that require ultra-high-resolution recording, intelligent search functionality, and enterprise-grade storage capacity. Supporting up to 32MP resolution per channel, the system includes 140TB HDD Included and is expandable up to 320TB using 16 hot-swappable SATA drive bays. Powered by a 12th generation Intel processor and embedded Linux OS, it delivers up to 900Mbps of recording and transmission bandwidth. Dual HDMI outputs allow simultaneous 4K and Full HD local display with flexible dynamic layout and virtual channel view options. When paired with Wisenet AI cameras, users can leverage AI object attribute search for fast and effective forensic investigation. With RAID 5/6 support, N+1 failover, TPM-based hardware security, and NDAA compliance, the XRN-6420DB4-140TB is designed for scalable, secure, and uninterrupted operation.
Key Features:
- 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
- 140TB HDD Included; expandable up to 320TB with 16 hot-swappable SATA drive bays
- Up to 900Mbps Recording Bandwidth; enables high-resolution multi-stream recording across all channels
- Dual HDMI Outputs; allows 4K and Full HD display with dynamic layouts and local monitoring flexibility
- AI Object Attribute Search; enables enhanced forensic accuracy with Wisenet AI camera integration
- H.265, H.264, MJPEG Compression; maximizes bandwidth and storage efficiency
- RAID 5/6 Support; delivers reliable data protection with dual 8-HDD array configuration
- Smart Search and Playback; includes event-based filtering, bookmarks, and flexible playback options
- Fisheye Dewarping; improves clarity for 360° panoramic video during local playback
- Remote Access; supported via Wisenet Viewer, WebViewer, and Wisenet Mobile
- Multi-User Access; supports 1 local and up to 3 remote users simultaneously
- Failover Support (N+1); ensures uninterrupted recording in the event of hardware or system failure
- 2-Way Audio Support; manages 64-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; delivers stable 24/7 operation with low maintenance requirements
- Secure Networking; includes HTTPS, IP filtering, 802.1x, TPM, signed firmware, and device certificate
- Hot-Swappable Drive Bays; allow tool-free maintenance or upgrades without interrupting system operation
Downloads
Additional Information
Channel Capacity:
|
64 Channels
|
Compliance:
|
NDAA Compliant
|
Compression:
|
H.264
H.265
MJPEG
|
Dimensions:
|
440.0 × 132.0 × 571.1 mm (17.32 × 5.20 × 22.48 in)
|
Environmental:
|
Indoor
|
Max. Storage Capacity:
|
160 TB
|
Pre-Installed Storage:
|
140 TB
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
