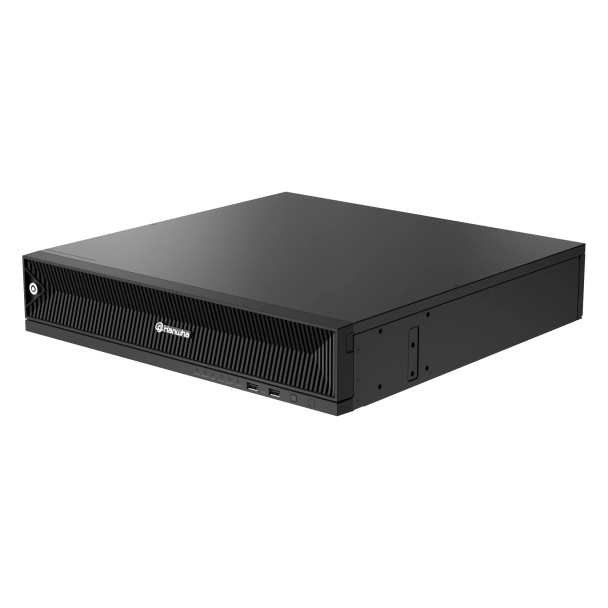

Hanwha Vision XRN-6420RB2-20TB 64 Channel 32MP Network Video Recorder with 20TB HDD Included
The Hanwha Vision XRN-6420RB2-20TB is a high-performance 64-channel network video recorder tailored for advanced surveillance infrastructures that demand ultra-high-resolution video, AI-powered analytics, and secure, expandable storage. Supporting camera resolutions up to 32MP, the unit includes 20TB HDD Included and is scalable up to 80TB via 8 hot-swappable SATA drive bays. It is powered by a 12th generation Intel processor and operates on embedded Linux OS, offering up to 520Mbps of recording and transmission bandwidth. With dual HDMI outputs for simultaneous 4K and Full HD display, dynamic layout control, and virtual channel view, the system enhances real-time monitoring. When integrated with Wisenet AI cameras, it supports AI object attribute search for rapid and accurate forensic review. Designed for enterprise use, the XRN-6420RB2-20TB also features RAID 5/6, N+1 failover, TPM-based security, and NDAA compliance.
Key Features:
- 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
- 20TB HDD Included; expandable up to 80TB with 8 hot-swappable SATA drive bays
- Up to 520Mbps Recording Bandwidth; enables high-resolution multi-stream recording
- Dual HDMI Outputs; supports simultaneous 4K and Full HD display with dynamic layout options
- AI Object Attribute Search; enhances forensic analysis when used with Wisenet AI cameras
- H.265, H.264, MJPEG Compression; improves storage and bandwidth efficiency
- RAID 5/6 Support; provides data redundancy with dual-array configuration
- Smart Search and Playback; includes event filtering, bookmarks, and flexible playback controls
- Fisheye Dewarping; enhances local clarity for 360° panoramic video
- Remote Access; supported via Wisenet Viewer, WebViewer, and Wisenet Mobile
- Multi-User Access; supports 1 local and up to 3 remote users simultaneously
- Failover Support (N+1); ensures continuous recording during system or hardware failure
- 2-Way Audio Support; manages 64-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; offers reliable, 24/7 performance with low maintenance
- Secure Networking; includes HTTPS, 802.1x, IP filtering, TPM, signed firmware, and device certificate
- Hot-Swappable Drive Bays; allow tool-free maintenance and upgrades without system interruption
Downloads
Additional Information
Capacity for each disk:
|
up to 8TB
|
Channel Capacity:
|
64 Channels
|
Compliance:
|
NDAA Compliant
|
Dimensions:
|
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
10 SATA Ports
|
Max. Storage Capacity:
|
80 TB
|
Pre-Installed Storage:
|
20 TB
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
